Model BG-XQF / BG-GXQF

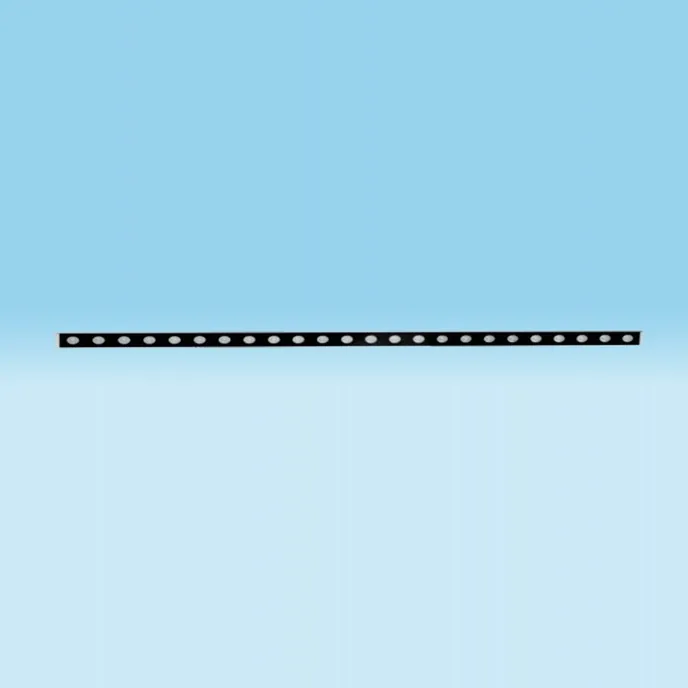

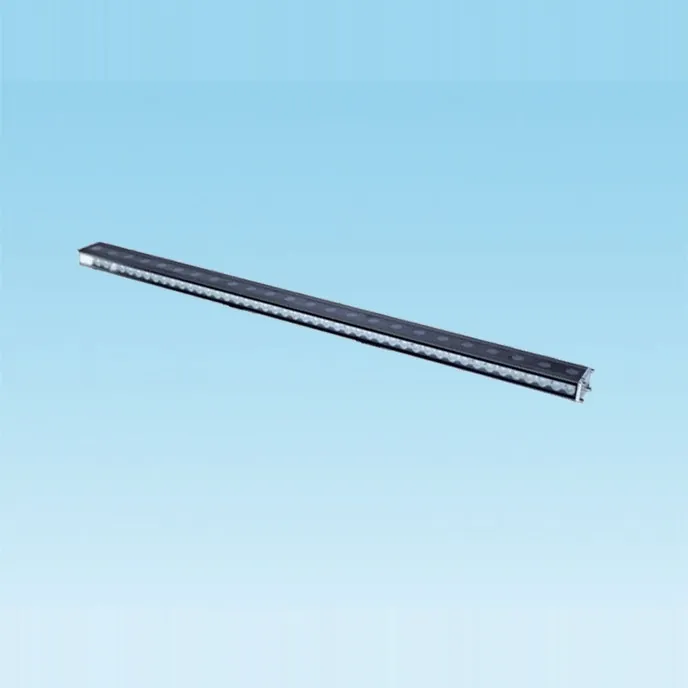

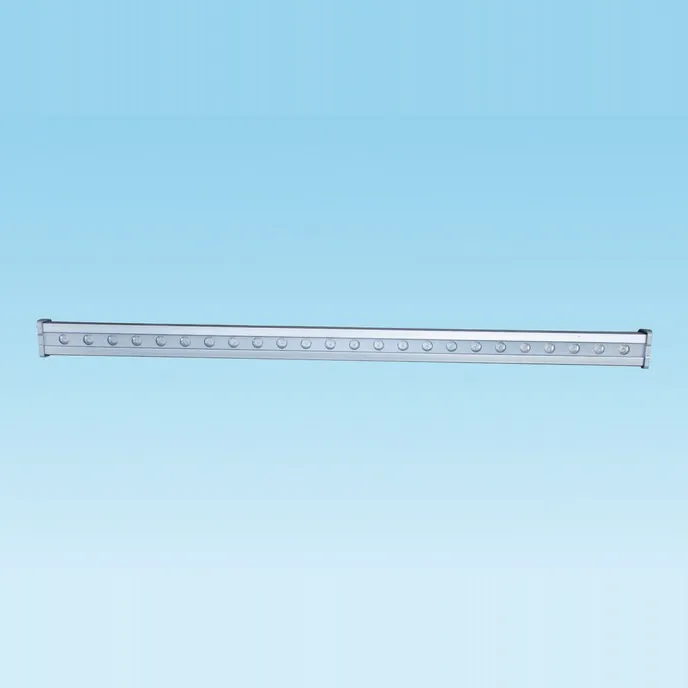

LED Wall Washer 12–36 W, IP68 / IP67

Linear wall washers for facades and bridges: deep-water IP68, potted IP67 and outline versions, white or full colour with DMX control.

  • 12 / 18 / 24 / 36 W, 600 or 1000 mm
  • White 2700–6500 K or RGB / RGBW
  • DMX512 control for chasing and colour effects
  • IP68 deep-water version for fountains and riverbanks
  • Aluminium housing, 10° × 45° or 10° × 60°
Request price & datasheet See specifications

Specifications

ModelsBG-XQF12 / 18 / 24 / 36, BG-GXQF12 / 18 / 24
Power12 / 18 / 24 / 36 W
Length600 mm (12, 18 W); 1000 mm (24, 36 W)
Input voltageDC 24 V
Power factor> 0.9
Colour2700–6500 K, RGB or RGBW
CRIRa 70–90
Ingress protectionIP68 (deep-water version), IP67 (potted)
MaterialAviation aluminium
Beam angle10° × 45° / 10° × 60°
Luminous efficacy80 lm/W
Operating temperature−30 °C to +50 °C
Rated life50,000 h

Values are nominal. Custom wattages, colour temperatures, optics and input voltages are available — ask for the full datasheet and IES file.

Three constructions share the same optics:

  • Deep-water wall washer — sealed to IP68 for fountains, pools and riverbanks.
  • Potted wall washer — electronics potted in resin, IP67, for facades and bridges.
  • Outline wall washer — a slim profile that marks the edges of buildings.

Our landscape lighting is installed on the Liancheng Bridge and at Xiangtan Railway Station; see our projects.

Applications

  • Bridges and river embankments
  • Building facades and landmarks
  • Government and commercial buildings
  • Fountains and waterfronts
