LED High Bay Lights

High bay LED lights from 30 W to 1500 W for warehouses, factories, steel plants and sports halls: industrial heat-pipe, fin and UFO LED high bay lights, IP44–IP67, with free lighting layouts.

Ask for a configuration & price

Models

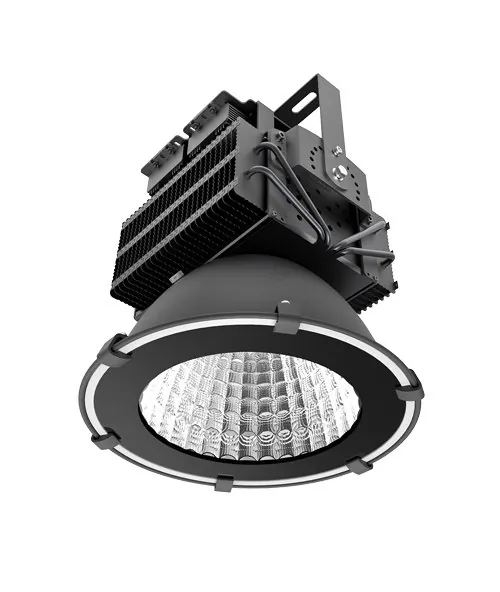

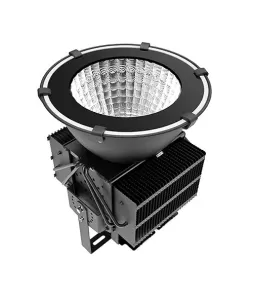

GKP40H High-Power Heat-Pipe High Bay & Flood Light 200–1500 W Our toughest industrial fitting. Heat-pipe cooling, IP67, stainless hardware and a 216° bracket, so it can be mounted as a high bay or aimed as a floodlight.
GKP40C Heat-Pipe LED High Bay 60–300 W, IP66 A round high bay with copper heat pipes pressed against the LED board, for hot workshops and 8–15 m ceilings.

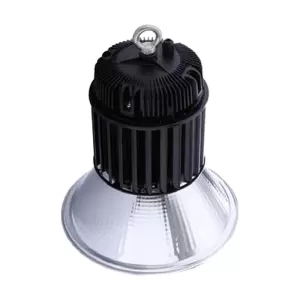

GKP40G Compact Heat-Pipe LED High Bay 60–250 W, IP65 A slim Ø200 mm heat-pipe high bay. The body diameter stays the same from 60 W to 250 W, only the height changes.

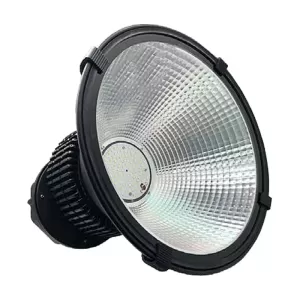

GKP40S Fin Heat-Sink LED High Bay 100–200 W, IP65 Large-area 99.6 % aluminium fins, tempered glass and a tool-free twist-lock shade.

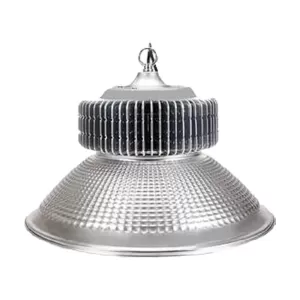

GKP40J Fin LED High Bay 60–250 W, Lightweight A light, cost-effective high bay for dry indoor spaces: under 2.2 kg even at 250 W.

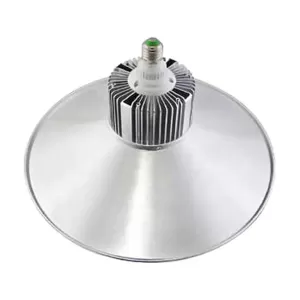

GKP40L Economy LED High Bay 30–100 W A simple, low-cost bay light for low ceilings, where the aluminium shade doubles as the heat sink.

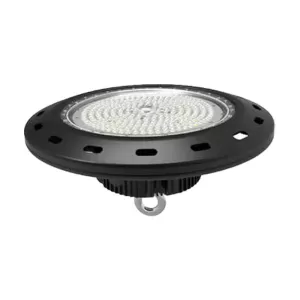

GKP40F UFO LED High Bay 100–200 W, IP65 A flat, round UFO high bay with a one-piece die-cast body, only 59–79 mm high.

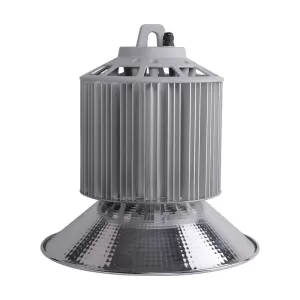

BG-NGW High-Temperature LED High Bay 100–200 W, up to 65 °C A high bay rated for 65 °C ambient, for the hot air under the roof of smelters, foundries, dyeing and paper mills.

Industrial buildings punish light fittings: heat rising under the roof, dust, vibration and long operating hours. Our high bays are built for this. We have installed them in steel plants and in production halls with 13 m ceilings.

Choose the type by environment

Type	Best for	Key point
Heat-pipe high bay	Steel mills, foundries, ports, outdoor masts, hot climates	Fastest heat transfer; IP67 high-power models with 25°–100° reflectors
Fin-type high bay	Workshops, warehouses, logistics centres	Large-area 1060 aluminium fins, tool-free cover, tempered glass
UFO high bay	Supermarkets, markets, car parks, waiting halls	Compact die-cast body, lowest cost per lumen

What to tell us for a quote

Tell us the ceiling height, floor area, ambient temperature and required lux level, and whether there is dust, steam or corrosive air. We select the type, wattage and beam angle to match.

Frequently asked questions

How high should a high bay light be mounted?

High bays are designed for mounting heights of roughly 6 m and above. Below about 6 m, a low bay or panel fitting gives more even light. For 12–20 m ceilings, choose narrow 25°–60° reflectors so the light reaches the floor.

Why choose a heat-pipe high bay?

Heat pipes move heat from the LED board to the fins much faster than solid aluminium, so the LEDs run cooler. That matters in hot environments such as steel mills, foundries and tropical warehouses, where an ordinary high bay loses lumens and fails early.

How many high bay lights do I need for my warehouse?

Send us the floor dimensions, ceiling height and required lux level (typically 150–300 lux for warehouses, 300–500 lux for production lines) and we will calculate the quantity and layout.
