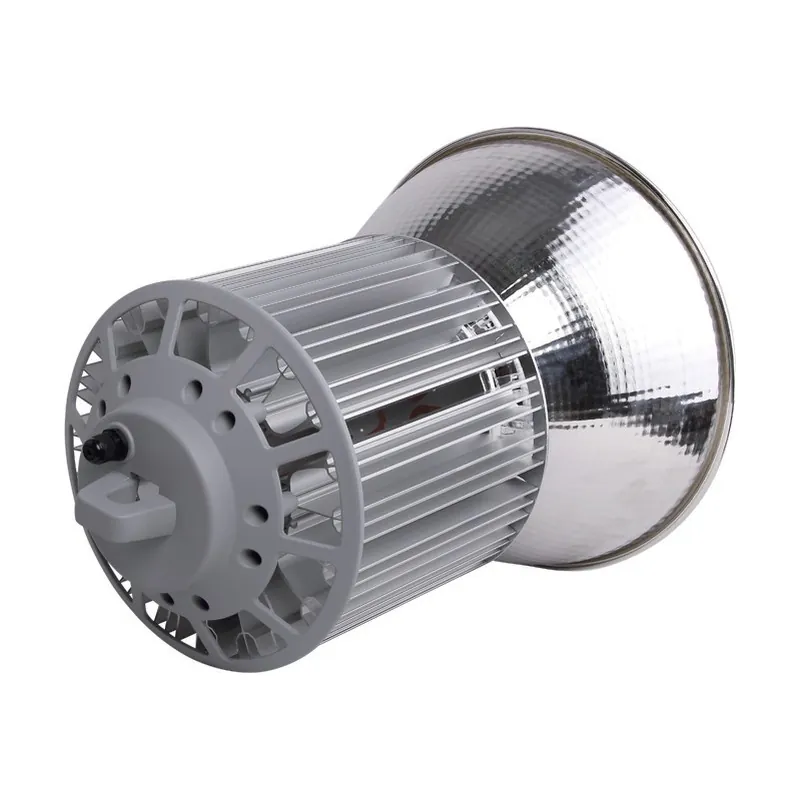

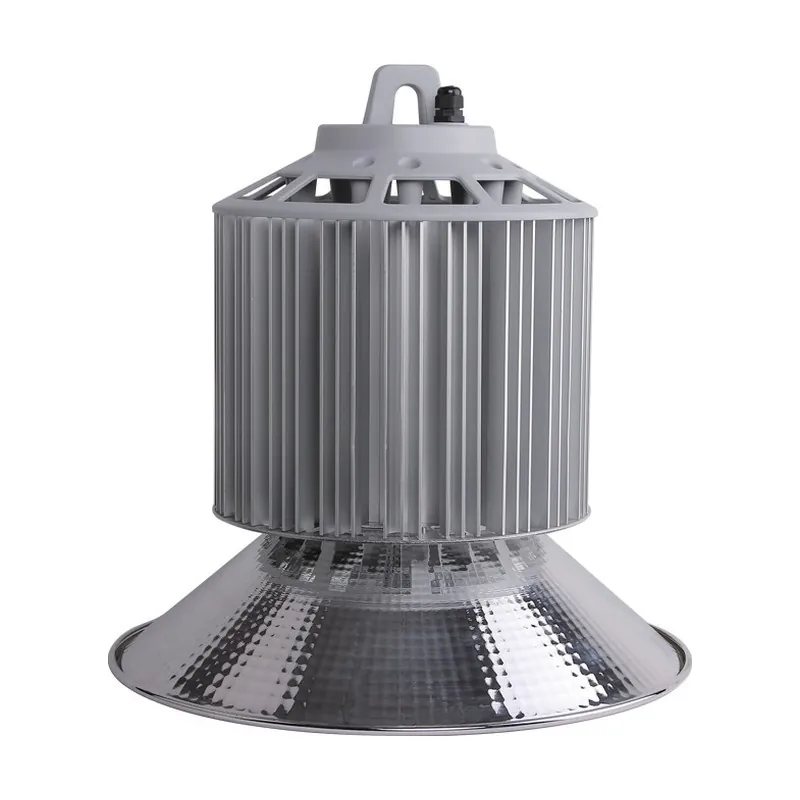

Model BG-NGW
A high bay rated for 65 °C ambient, for the hot air under the roof of smelters, foundries, dyeing and paper mills.
| Models | BG-NGW100A / 150A / 200A |
|---|---|
| Power | 100 / 150 / 200 W |
| Input voltage | AC 180–265 V, 47/63 Hz |
| Power factor | > 0.95 |
| Luminous efficacy | > 110 lm/W |
| Colour temperature | 3000 / 4000 / 5000 / 6000 K |
| CRI | Ra 70 / 80 / 90 |
| Beam angle | 45° / 60° / 90° / 120° |
| Ingress protection | IP65 |
| Material | Aluminium alloy fin heat sink (99.6 % Al) |
| Operating temperature | −30 °C to +65 °C |
| Rated life | > 80,000 h |
Values are nominal. Custom wattages, colour temperatures, optics and input voltages are available — ask for the full datasheet and IES file.
| Model | Power (W) | Size (mm) | Weight (kg) |
|---|---|---|---|
| BG-NGW100A | 100 | Ø190 × 405 | 3.45 |
| BG-NGW150A | 150 | Ø210 × 425 | 4.4 |
| BG-NGW200A | 200 | Ø256 × 415 | 5.5 |
The fitting is rated for ambient air up to 65 °C around the luminaire. Above direct furnace openings the air can be hotter; send us the measured roof temperature and we will advise placement or a heat-pipe model.
