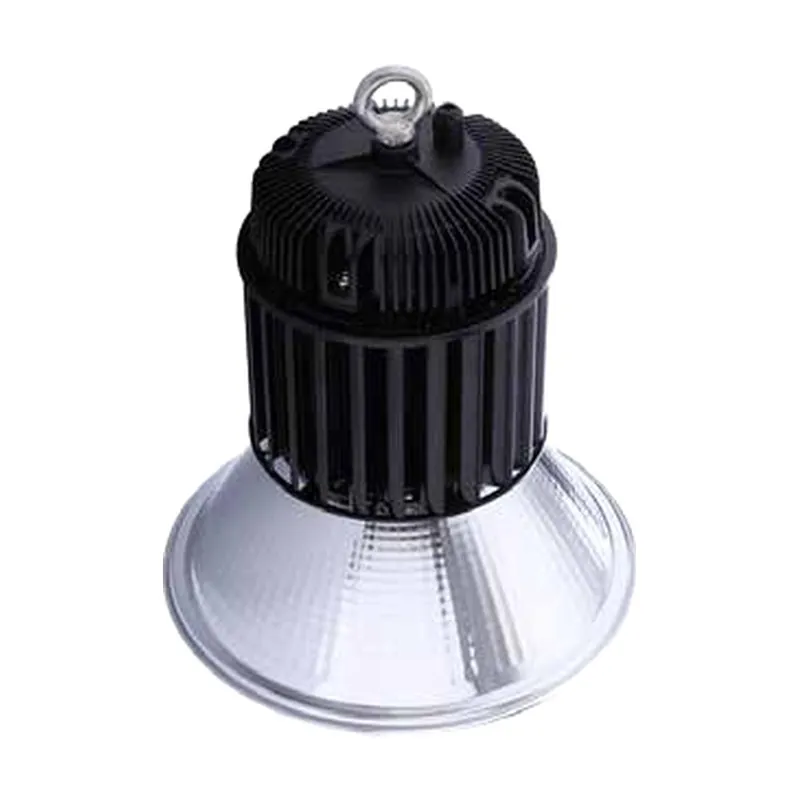

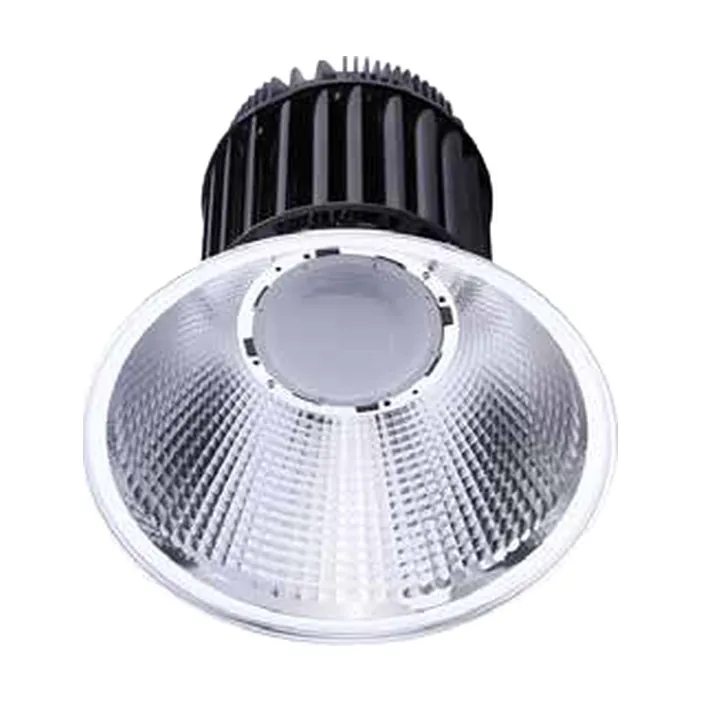

Model GKP40G
A slim Ø200 mm heat-pipe high bay. The body diameter stays the same from 60 W to 250 W, only the height changes.
| Models | GKP40G060 / 100 / 150 / 200 / 250 |
|---|---|
| Power | 60 / 100 / 150 / 200 / 250 W |
| Input voltage | AC 180–265 V, 47/63 Hz (wide input on request) |
| Power factor | > 0.95 |
| Luminous efficacy | > 130 lm/W |
| Colour temperature | 3000 / 4000 / 5000 / 6000 K |
| CRI | Ra 70 / 80 / 90 |
| Beam angle | 45° / 60° / 90° / 120° |
| Ingress protection | IP65 |
| Material | Aluminium fin heat sink with copper heat pipes |
| Operating temperature | −30 °C to +50 °C |
Values are nominal. Custom wattages, colour temperatures, optics and input voltages are available — ask for the full datasheet and IES file.
| Model | Power (W) | Size (mm) | Weight (kg) |
|---|---|---|---|
| GKP40G060 | 60 | Ø200 × 292 | 2.6 |
| GKP40G100 | 100 | Ø200 × 312 | 3.2 |
| GKP40G150 | 150 | Ø200 × 357 | 4.05 |
| GKP40G200 | 200 | Ø200 × 407 | 5.65 |
| GKP40G250 | 250 | Ø200 × 457 | 7.05 |
