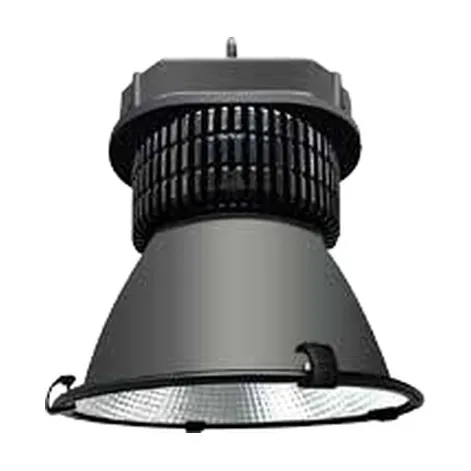

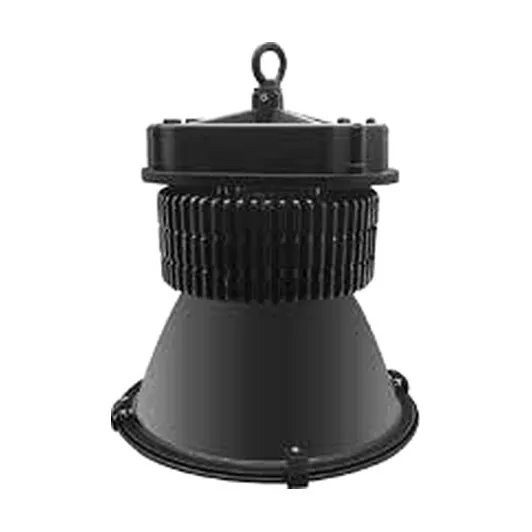

Model GKP40S
Large-area 99.6 % aluminium fins, tempered glass and a tool-free twist-lock shade.
| Models | GKP40S100 / 150 / 200 |
|---|---|
| Power | 100 / 150 / 200 W |
| Input voltage | AC 180–265 V, 47/63 Hz |
| Power factor | > 0.95 |
| Luminous efficacy | > 130 lm/W |
| Colour temperature | 3000 / 4000 / 5000 / 6000 K |
| CRI | Ra 70 / 80 / 90 |
| Beam angle | 45° / 60° / 90° / 120° |
| Ingress protection | IP65 |
| Material | 1060 aluminium fins (99.6 % Al), tempered glass |
| Operating temperature | −30 °C to +50 °C |
Values are nominal. Custom wattages, colour temperatures, optics and input voltages are available — ask for the full datasheet and IES file.
| Model | Power (W) | Size (mm) | Weight (kg) |
|---|---|---|---|
| GKP40S100 | 100 | Ø190 × 405 | 3.45 |
| GKP40S150 | 150 | Ø210 × 425 | 4.4 |
| GKP40S200 | 200 | Ø256 × 415 | 5.5 |
For furnaces, dyeing and paper mills where the ceiling air is hot, see the high-temperature high bay.
Request a quote
Tell us the quantity and where the lights will be installed. We reply by email within one working day.
