LED Street Lights

LED street lights from 30 W to 350 W for municipal, commercial and highway lighting: modular die-cast luminaires with Type II/III optics, IP65–IP67, surge protection and dimming. LED street light manufacturer in China since 2010.

Ask for a configuration & price

Models

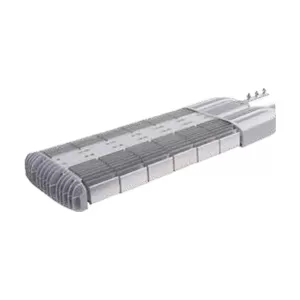

LDM30C Modular LED Street Light 30–350 W, IP67 Our main road luminaire: 1 to 7 LED modules on one die-cast body, so the same fitting covers village lanes and six-lane arterials.

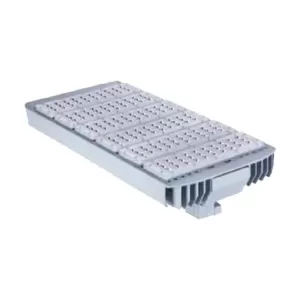

BGLDM30G E-Series Modular LED Street Light 60–300 W A flat, wide modular street light with every module replaceable on site and the driver hidden in the back of the housing.

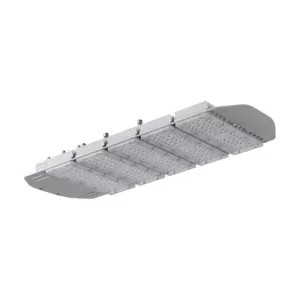

BGLDM30J F-Series Slim LED Street Light 30–300 W The lightest of our modular street lights: 2.1 kg at 30–50 W and 5.2 kg at 300 W, so it suits older poles and long arms.

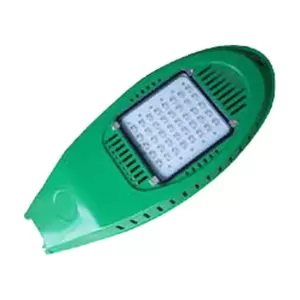

LDL30G Orchid LED Street Light 20–80 W A decorative street light head in green, blue or white housings, for village roads, parks and as the lamp of split solar and wind-solar systems.

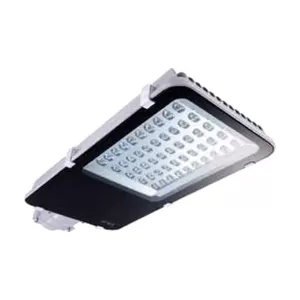

LDZ30J Compact LED Street Light 20–80 W A small, low-cost street light head for lanes, compounds and split solar poles from 3 to 8 m.

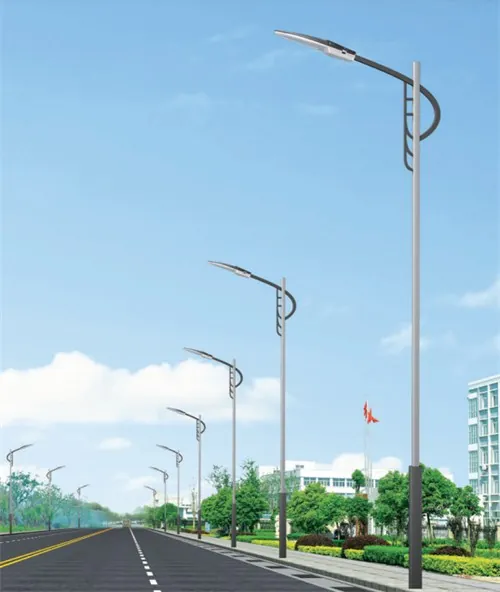

LED street lights are the backbone of municipal road lighting. Our road luminaires have been installed on urban arterial roads, bridges, river embankments and expressway toll plazas in Hunan, including the 13 km Tanzhou Avenue main and service road retrofit in Xiangtan.

What to specify

Wattage and lumen output — matched to road class and pole height, not to the old lamp's wattage
Optics — Type II for narrow roads, Type III for wider roads and single-side layouts
Driver — brand, input voltage range (100–277 V is common for export), power factor above 0.95
Surge protection — 10 kV minimum for outdoor road lighting
IP and IK rating — IP66 and IK08 are the usual minimum for roads
Mounting — side-entry or post-top, with the spigot diameter of your existing poles

Retrofit or new road

For retrofits we match the fixing spigot and the light distribution to the existing pole spacing, so you can replace sodium lamps without moving poles. For new roads we provide the complete package: luminaires, single or double-arm poles, and anchor bolts.

Frequently asked questions

What wattage do I need to replace a 250 W sodium street light?

In most cases a 100–120 W LED street light gives equal or better road luminance than a 250 W high-pressure sodium lamp, because LED optics put the light on the road instead of the sky. We confirm this with a simulation for your road width and pole height.

Can your street lights be dimmed or connected to a smart control system?

Yes. 0–10 V or DALI dimming drivers and NEMA or Zhaga sockets for photocells and smart-city controllers are available on request.

What surge protection do you use?

Street lights are exposed to lightning and grid spikes, so we fit a dedicated surge protector (10 kV as standard, 20 kV on request) in addition to the protection built into the driver.

Request a quote

Get a configuration and price for your led street lights

Tell us the quantity, site location and any drawings or specifications. We reply by email within one working day.
