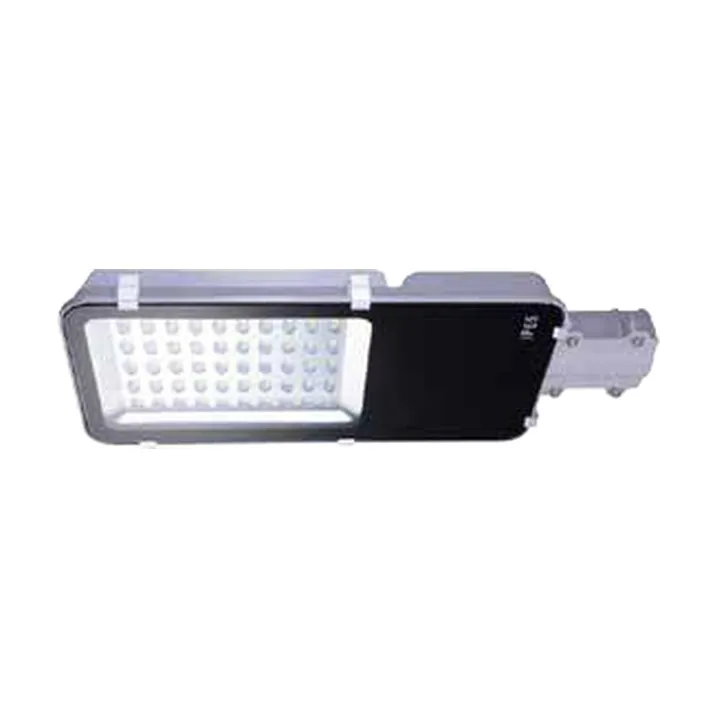

Compact LED Street Light 20–80 W — view 2

Model LDZ30J

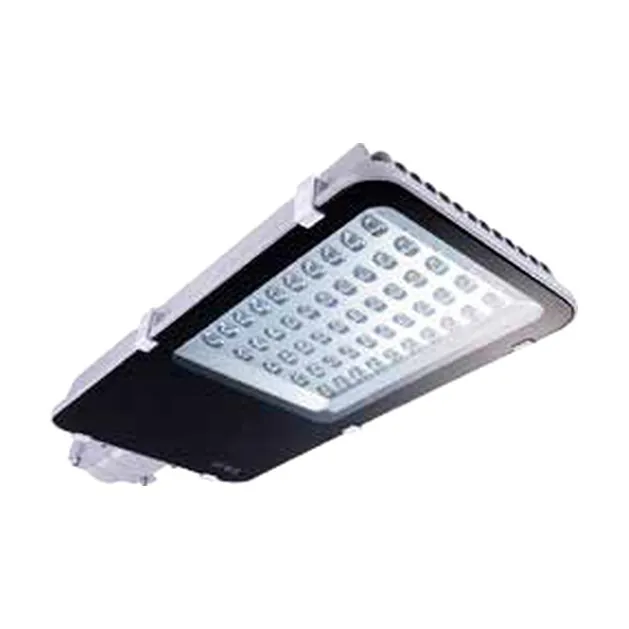

Compact LED Street Light 20–80 W

A small, low-cost street light head for lanes, compounds and split solar poles from 3 to 8 m.

20 W to 80 W, 1.1–3.8 kg
IP65 die-cast aluminium housing with tempered glass
AC mains or DC solar versions
For 3–8 m single-arm poles

Request price & datasheet See specifications

Specifications

Models	LDZ30J020 … LDZ30J080
Power	20 / 30 / 40 / 50 / 60 / 70 / 80 W
Input voltage	AC 185–264 V, 47/63 Hz; DC 12/24 V for solar systems
Power factor	> 0.92 (AC version)
Luminous efficacy	> 90 lm/W
Colour temperature	3000 / 4000 / 5000 / 6000 K
CRI	Ra 70 / 80 / 90
Beam angle	140° × 80°
Ingress protection	IP65
Material	ADC12 die-cast aluminium + tempered glass + PMMA lens
Operating temperature	−30 °C to +50 °C
Rated life	> 30,000 h
Pole height	3–8 m, single arm

Values are nominal. Custom wattages, colour temperatures, optics and input voltages are available — ask for the full datasheet and IES file.

The LDZ30J is a simple, light street light head. It is the economical choice for lanes, compounds and off-grid solar poles where mounting heights are low.

Sizes and weights

Model	Power (W)	Size (mm)	Weight (kg)
LDZ30J020	20	385 × 135 × 65	1.1
LDZ30J030	30	500 × 210 × 65	2.2
LDZ30J040	40	500 × 210 × 65	2.4
LDZ30J050	50	590 × 255 × 65	2.7
LDZ30J060	60	590 × 255 × 65	3.0
LDZ30J070	70	780 × 300 × 95	3.6
LDZ30J080	80	780 × 300 × 95	3.82

Applications

Lanes and access roads
Factory compounds and yards
Residential estates
Split solar street lights

Frequently asked questions

When should I choose this light instead of a modular street light?

For short poles, low traffic and tight budgets. For main roads, long service life and IP67, choose the modular LDM30C.
