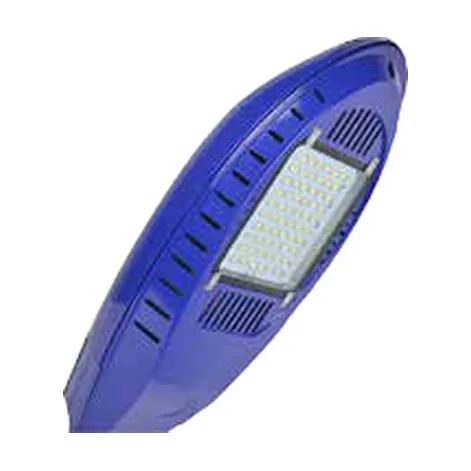

Orchid LED Street Light 20–80 W — view 2

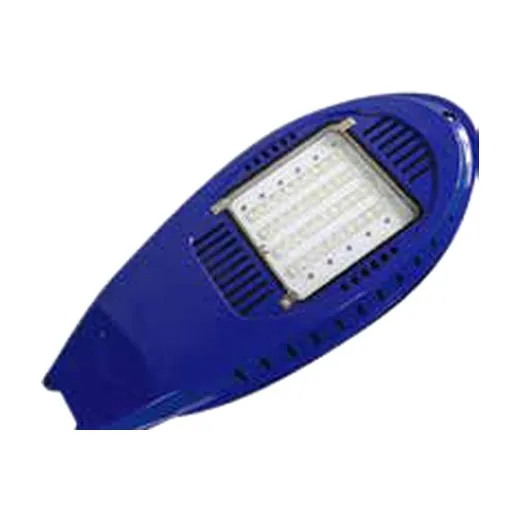

Orchid LED Street Light 20–80 W — view 3

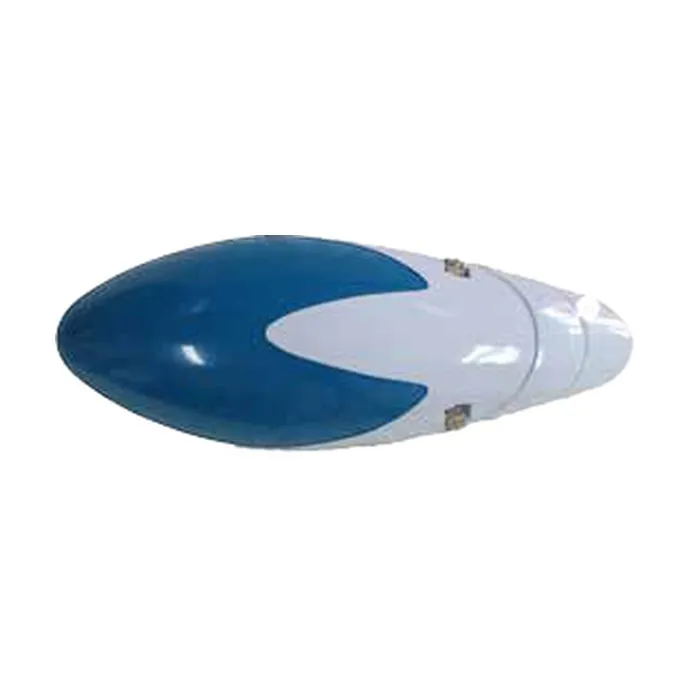

Orchid LED Street Light 20–80 W — view 4

Model LDL30G

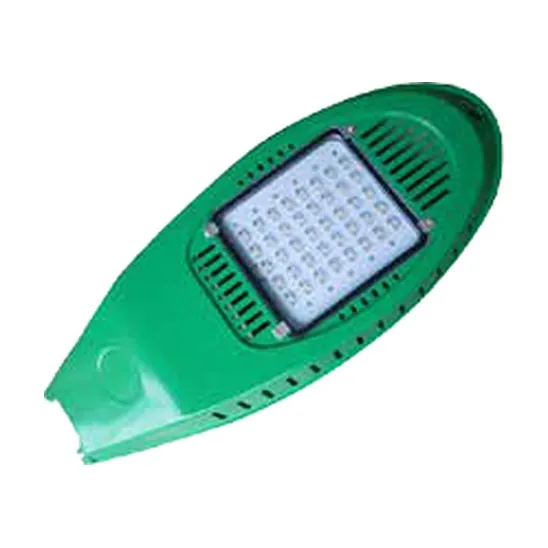

Orchid LED Street Light 20–80 W

A decorative street light head in green, blue or white housings, for village roads, parks and as the lamp of split solar and wind-solar systems.

20 W to 80 W, IP65
Housing colours to match the street (green, blue, white and others)
Secondary optics for even light without rings or dark spots
Tempered glass cover over PMMA lenses
Works on mains or as the head of split solar / wind-solar street lights

Request price & datasheet See specifications

Specifications

Models	LDL30G020 … LDL30G080
Power	20 / 30 / 40 / 50 / 60 / 70 / 80 W
Input voltage	AC 185–264 V, 47/63 Hz; DC 12/24 V for solar systems
Power factor	> 0.95 (AC version)
Luminous efficacy	> 100 lm/W
Colour temperature	3000 / 4000 / 5000 / 6000 K
CRI	Ra 70 / 80 / 90
Beam angle	140° × 80°
Ingress protection	IP65
Material	ADC12 die-cast aluminium + tempered glass + PMMA lens
Operating temperature	−30 °C to +50 °C
Rated life	> 50,000 h
Pole height	4–10 m, single or double arm

Values are nominal. Custom wattages, colour temperatures, optics and input voltages are available — ask for the full datasheet and IES file.

The orchid head is our decorative small street light. It is popular for village road programmes and scenic areas because the housing colour can match local design, and because it doubles as the lamp head for off-grid solar and wind-solar poles.

Sizes and weights

Model	Power (W)	Size (mm)	Weight (kg)
LDL30G020	20	700 × 320 × 230	1.3
LDL30G030	30	700 × 320 × 230	1.6
LDL30G040	40	700 × 320 × 230	1.6
LDL30G050	50	730 × 320 × 230	2.4
LDL30G060	60	730 × 320 × 230	2.6
LDL30G070	70	780 × 300 × 95	3.2
LDL30G080	80	780 × 300 × 95	3.5

For off-grid use see our split solar street light and the solar street light calculator.

Applications

Village and rural roads
Parks, scenic areas and villas
Residential quarters and sidewalks
Split solar and wind-solar hybrid street lights
Areas with weak or no grid

Frequently asked questions

Can I choose the housing colour?

Yes. The catalog shows green, blue and white housings; other RAL colours are possible for project quantities.

Is there a DC version for solar?

Yes. The same head is used on our split solar and wind-solar hybrid street lights with a 12 V or 24 V DC driver and controller.
