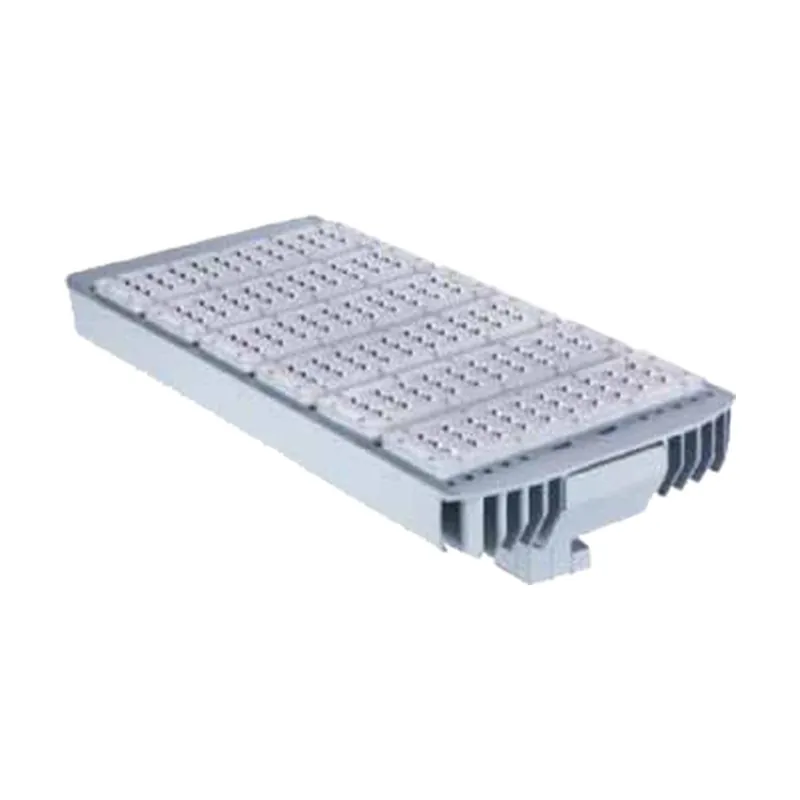

E-Series Modular LED Street Light 60–300 W

Model BGLDM30G

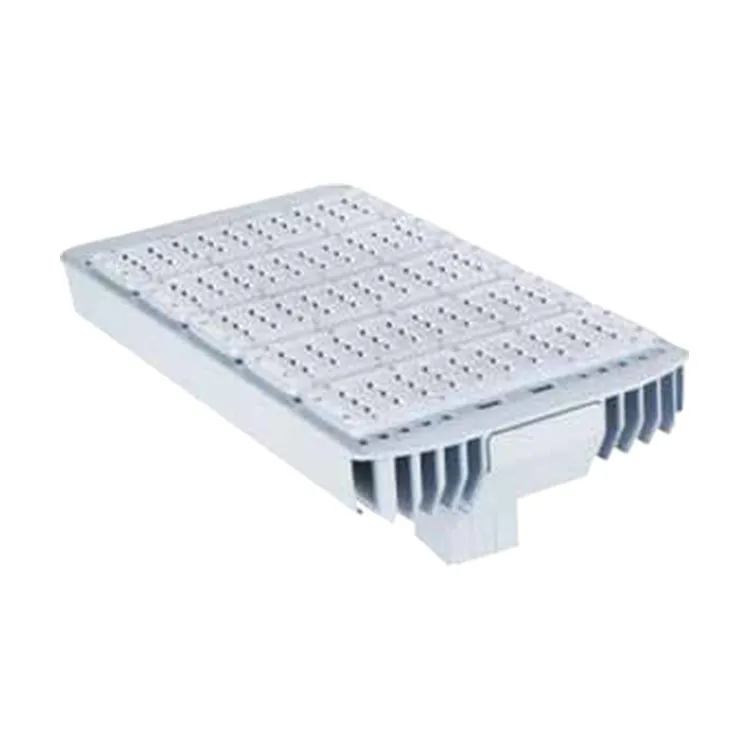

E-Series Modular LED Street Light 60–300 W

A flat, wide modular street light with every module replaceable on site and the driver hidden in the back of the housing.

60 W to 300 W in five housing sizes
Each LED module can be replaced on its own
All-aluminium modular heat sink, IP65
PMMA optical lens with high transmittance, 140°×80°
Driver compartment built into the back for a clean profile

Request price & datasheet See specifications

Specifications

Models	BGLDM30G060-100 … BGLDM30G300
Power	60 / 80 / 90 / 100 / 120 / 150 / 180 / 200 / 250 / 300 W
Input voltage	AC 185–264 V, 47/63 Hz (100–277 V on request)
Power factor	> 0.95
Luminous efficacy	> 100 lm/W
Colour temperature	3000 / 4000 / 5000 / 6000 K
CRI	Ra 70 / 80 / 90
Beam angle	140° × 80°
Ingress protection	IP65
Material	ADC12 die-cast aluminium + PMMA lens
Operating temperature	−30 °C to +50 °C
Rated life	> 80,000 h

Values are nominal. Custom wattages, colour temperatures, optics and input voltages are available — ask for the full datasheet and IES file.

The E-series puts its LED modules in a wide, flat array with the driver in a sealed compartment on the back. The result is a compact luminaire for its power and easy maintenance: modules and driver are serviced separately.

Sizes and weights

Model	Power (W)	Size (mm)	Weight (kg)
BGLDM30G060-100	60 / 80 / 90 / 100	280 × 264 × 115	3.3
BGLDM30G120/150	120 / 150	280 × 353 × 115	4.1
BGLDM30G180/200	180 / 200	280 × 442 × 115	4.9
BGLDM30G250	250	280 × 531 × 115	5.8
BGLDM30G300	300	280 × 620 × 115	7.0

Chip brand, driver brand, surge protection level and dimming interface are confirmed with each order. Tell us your project requirements and we will match the configuration.

Applications

Urban and rural roads
Railway yards and station roads
Tunnel entrances and underpasses
Factory roads and car parks

Frequently asked questions

What is the difference between the E-series and the LDM30C?

The LDM30C is IP67 with a slimmer, longer body and goes up to 350 W. The E-series is IP65, wider and shorter for the same power, and has the driver built into the back of the housing. Both use replaceable modules.

Can a single failed module be replaced?

Yes. Each module is mounted and wired separately, so a maintenance crew can swap one module from a bucket truck without taking the luminaire down.
