Model BGLDM30J

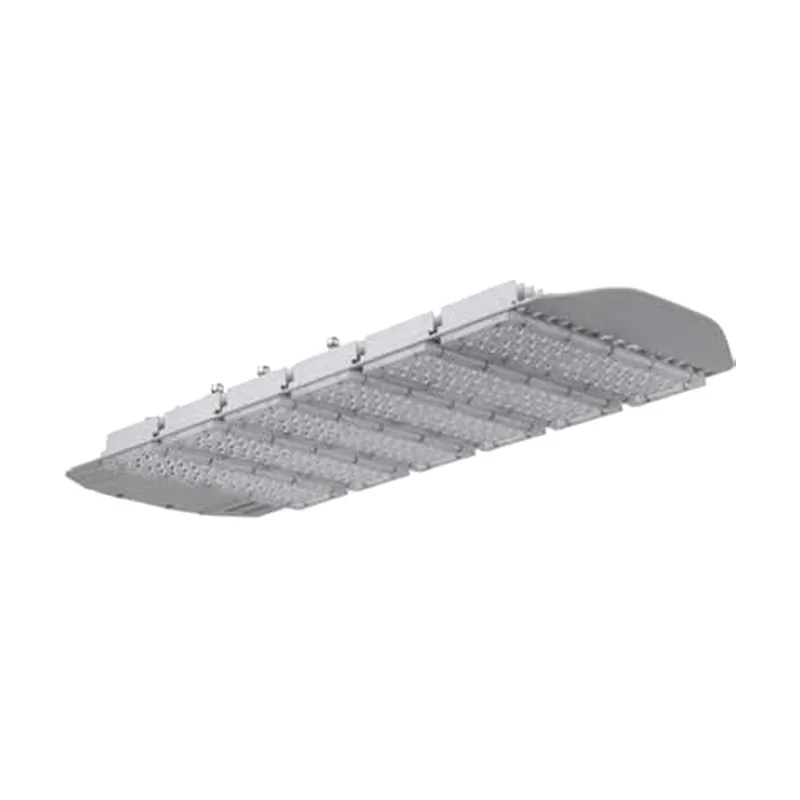

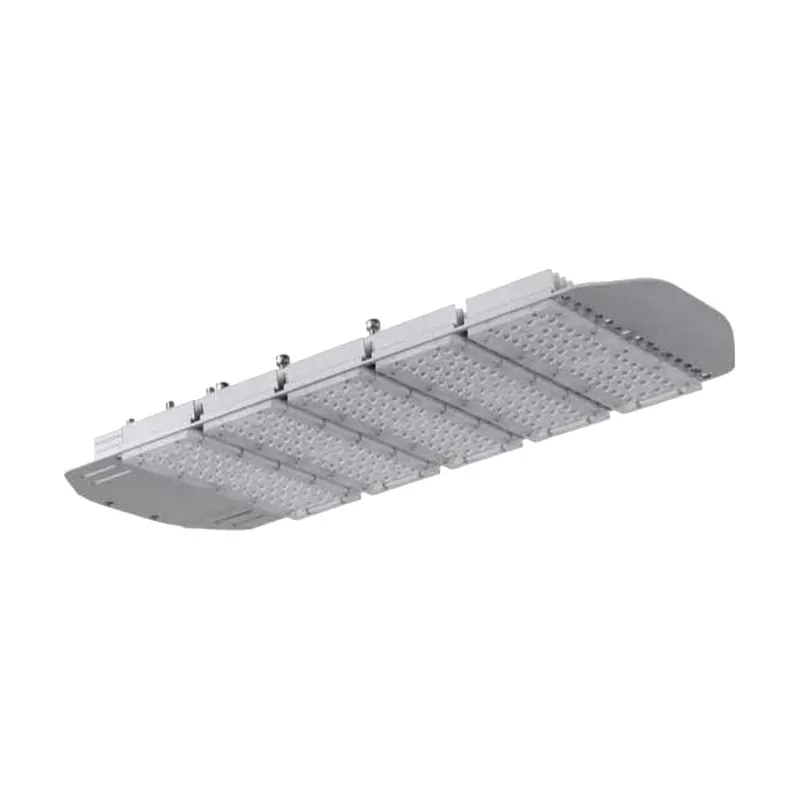

F-Series Slim LED Street Light 30–300 W

The lightest of our modular street lights: 2.1 kg at 30–50 W and 5.2 kg at 300 W, so it suits older poles and long arms.

30 W to 300 W, 2.1–5.2 kg
IP65 die-cast housing with anodised surface
Light source in close contact with the housing for convection cooling
Instant full brightness, no warm-up; rated for frequent switching
Direct replacement for high-pressure sodium street lights

Request price & datasheet See specifications

Specifications

Models	BGLDM30J030-50 … BGLDM30J300
Power	30 / 40 / 50 / 60 / 80 / 90 / 100 / 120 / 150 / 180 / 200 / 250 / 300 W
Input voltage	AC 185–264 V, 47/63 Hz (100–277 V on request)
Power factor	> 0.92
Luminous efficacy	> 100 lm/W
Colour temperature	3000 / 4000 / 5000 / 6000 K
CRI	Ra 70 / 80 / 90
Beam angle	140° × 80°
Ingress protection	IP65
Material	ADC12 die-cast aluminium + PMMA lens
Operating temperature	−30 °C to +50 °C
Rated life	> 80,000 h

Values are nominal. Custom wattages, colour temperatures, optics and input voltages are available — ask for the full datasheet and IES file.

The F-series is a slim modular street light designed for retrofits. The LED boards sit directly against the die-cast housing, which works as the heat sink through convection with the outside air. The housing is anodised and sealed to IP65.

Sizes and weights

Model	Power (W)	Size (mm)	Weight (kg)
BGLDM30J030-50	30 / 40 / 50	334 × 258 × 100	2.1
BGLDM30J060-100	60 / 80 / 90 / 100	423 × 258 × 100	2.9
BGLDM30J120/150	120 / 150	423 × 258 × 100	3.5
BGLDM30J180/200	180 / 200	512 × 258 × 100	3.9
BGLDM30J250	250	601 × 258 × 100	4.6
BGLDM30J300	300	690 × 258 × 100	5.2

Applications

Main roads and municipal streets
Rural roads and overpasses
Schools, residential areas and parks
Industrial zones

Frequently asked questions

Why choose a lighter street light?

Older concrete or thin steel poles and long single arms have limited load capacity. A lighter head reduces the bending moment and wind load, which can save replacing poles in a retrofit.

Can it run on 120 V or 277 V?

The standard driver is 185–264 V. For 120 V or 277 V grids we fit a 100–277 V wide-input driver; tell us the grid voltage when you ask for a quote.

Request a quote

Price, datasheet and lead time for BGLDM30J

Tell us the quantity and where the lights will be installed. We reply by email within one working day.
