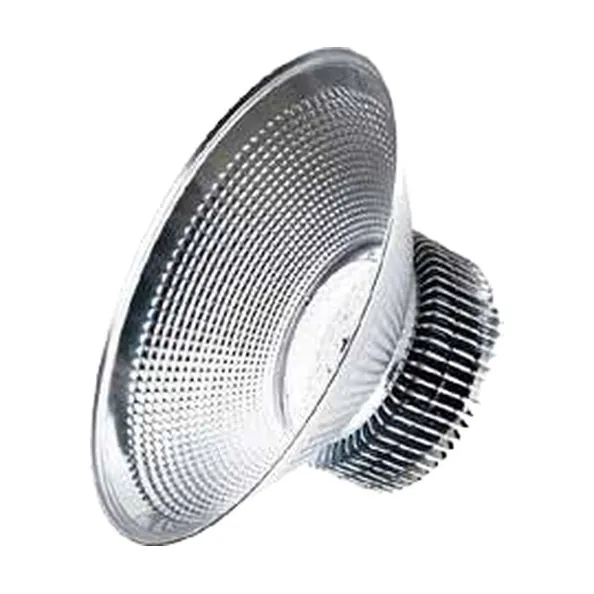

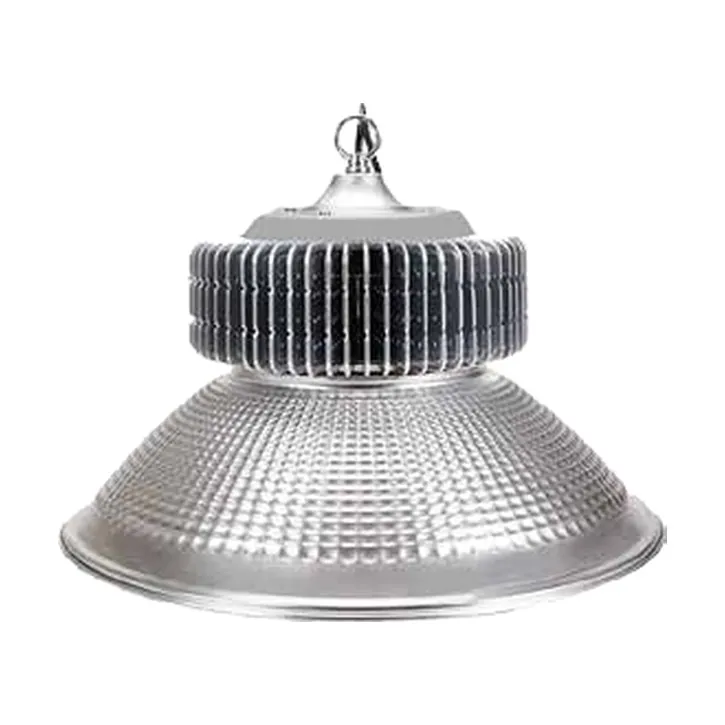

Model GKP40J
A light, cost-effective high bay for dry indoor spaces: under 2.2 kg even at 250 W.
| Models | GKP40J060 / 100 / 150 / 200 / 250 |
|---|---|
| Power | 60 / 100 / 150 / 200 / 250 W |
| Input voltage | AC 180–265 V, 47/63 Hz |
| Power factor | > 0.90 |
| Luminous efficacy | > 110 lm/W |
| Colour temperature | 3000 / 4000 / 5000 / 6000 K |
| CRI | Ra 70 / 80 / 90 |
| Beam angle | 45° / 60° / 90° / 120° |
| Ingress protection | IP44 (dry indoor) |
| Material | Aluminium fin heat sink |
| Operating temperature | −10 °C to +50 °C |
Values are nominal. Custom wattages, colour temperatures, optics and input voltages are available — ask for the full datasheet and IES file.
| Model | Power (W) | Size (mm) | Weight (kg) |
|---|---|---|---|
| GKP40J060 | 60 | Ø350 × 220 | 0.906 |
| GKP40J100 | 100 | Ø450 × 285 | 1.19 |
| GKP40J150 | 150 | Ø450 × 295 | 1.27 |
| GKP40J200 | 200 | Ø500 × 325 | 1.95 |
| GKP40J250 | 250 | Ø500 × 335 | 2.12 |
Not recommended. For washdown, humid or dusty areas choose an IP65 model such as the GKP40S or GKP40F.
Request a quote
Tell us the quantity and where the lights will be installed. We reply by email within one working day.
