Sizes
| Power (W) | Size (mm) |
|---|---|
| 3 | Ø100 |
| 6 | Ø120 × 90 |
| 9 | Ø160 × 95 |
| 18 | Ø200 × 95 |
| 24 | Ø250 × 95 |
| 36 | Ø300 × 90 |
Applications
- Plazas and pedestrian streets
- Gardens and parks
- Steps and paths
- Facades and trees
Model BG-DMY / BG-DMF

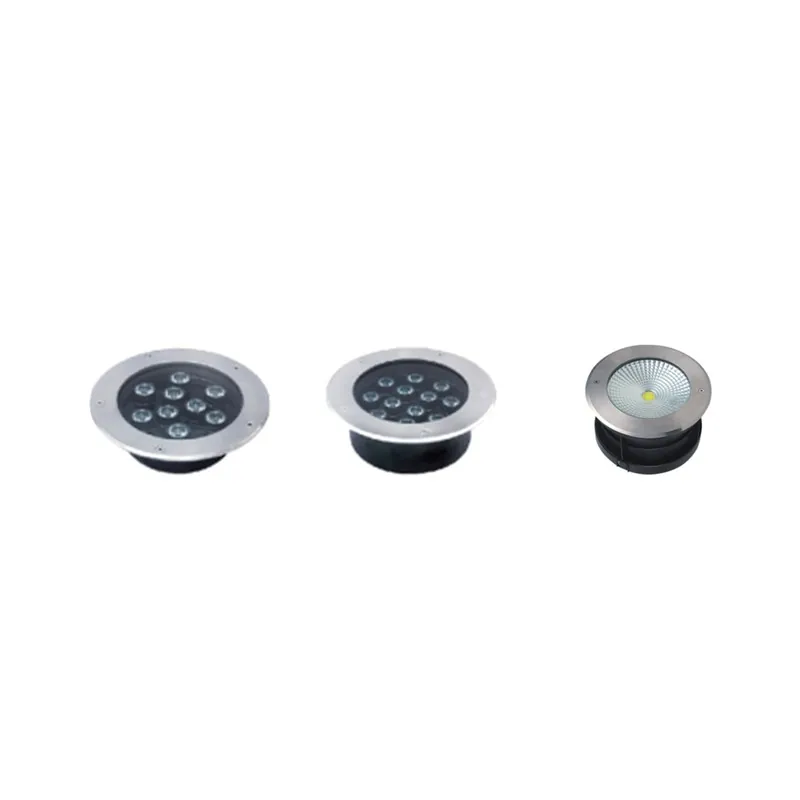

LED In-Ground Uplight 3–36 W
Buried uplights in round and square versions, for plazas, steps, trees and facades.
- 3 W to 36 W
- Round (DMY) or square (DMF)
- Tempered glass top, aluminium body
- 15°, 25° or 60° beam
Specifications
| Models | BG-DMY03 … 36 / BG-DMF03 … 36 |
|---|---|
| Power | 3 / 6 / 9 / 18 / 24 / 36 W |
| Input voltage | AC 100–240 V, 47/63 Hz |
| Power factor | > 0.9 |
| Colour temperature | 2700 / 4000 / 5000 / 6500 K |
| CRI | Ra 70–90 |
| Ingress protection | IP65 (IP67 on request) |
| Material | Aluminium + tempered glass |
| Beam angle | 15° / 25° / 60° |
| Luminous efficacy | 90 lm/W |
| Rated life | 50,000 h |
Values are nominal. Custom wattages, colour temperatures, optics and input voltages are available — ask for the full datasheet and IES file.
Request a quote
Price, datasheet and lead time for BG-DMY / BG-DMF
Tell us the quantity and where the lights will be installed. We reply by email within one working day.
