Applications
- Building outlines and eaves
- Bridges
- Entertainment venues
- Billboards
Model BG-XTT

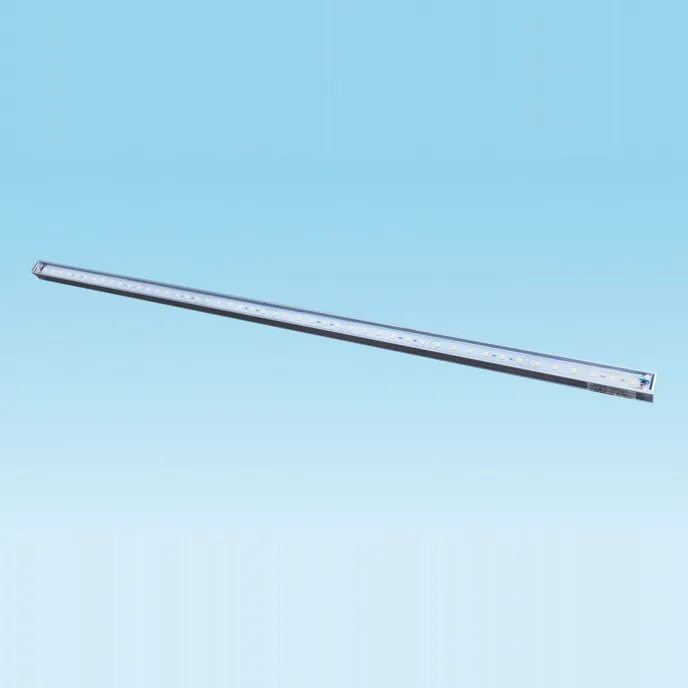

LED Linear Facade Light 5–12 W
Slim LED line lights that outline eaves, windows and building edges, in white or full colour.
- 5 / 10 / 12 W
- 500 or 1000 mm
- White or RGB / RGBW
- IP65, aluminium with PC cover
Specifications
| Models | BG-XTT12005 / 12010 / 12012 |
|---|---|
| Power | 5 / 10 / 12 W |
| Length | 500 / 1000 / 1000 mm |
| Input voltage | DC 24 V |
| Power factor | > 0.9 |
| Colour | 2700–6500 K, RGB or RGBW |
| CRI | Ra 70–90 |
| Ingress protection | IP65 |
| Material | Aviation aluminium + PC |
| Beam angle | 120° |
| Luminous efficacy | 80 lm/W |
| Rated life | 30,000 h |
Values are nominal. Custom wattages, colour temperatures, optics and input voltages are available — ask for the full datasheet and IES file.
Request a quote
Price, datasheet and lead time for BG-XTT
Tell us the quantity and where the lights will be installed. We reply by email within one working day.
