Applications
- Temples and pavilions
- Traditional and heritage buildings
- Scenic areas
Model BG-WLL

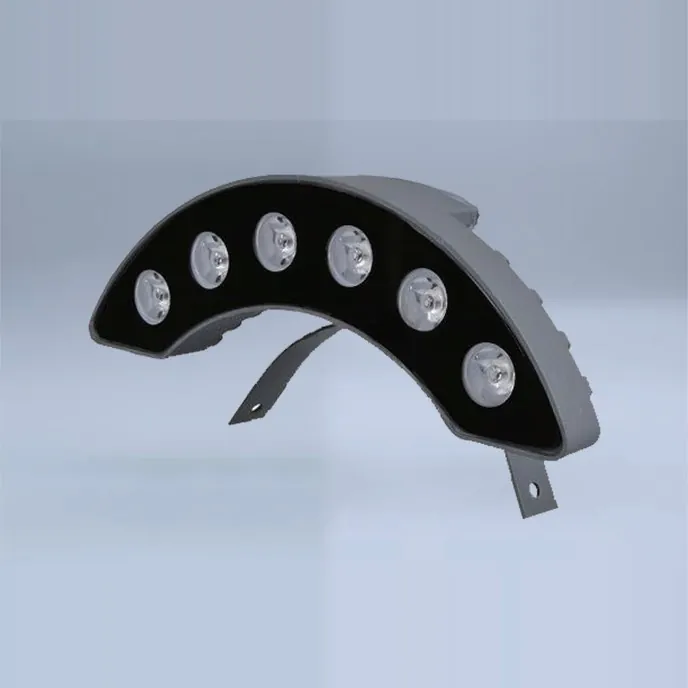

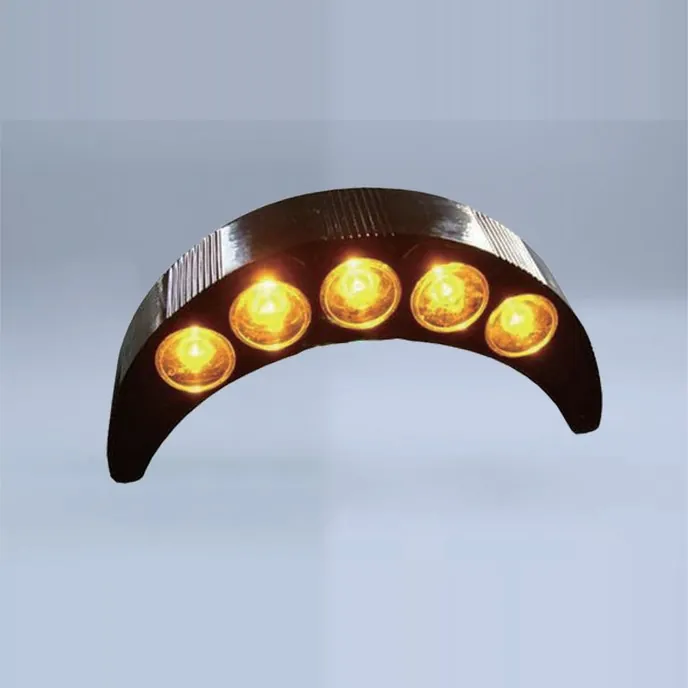

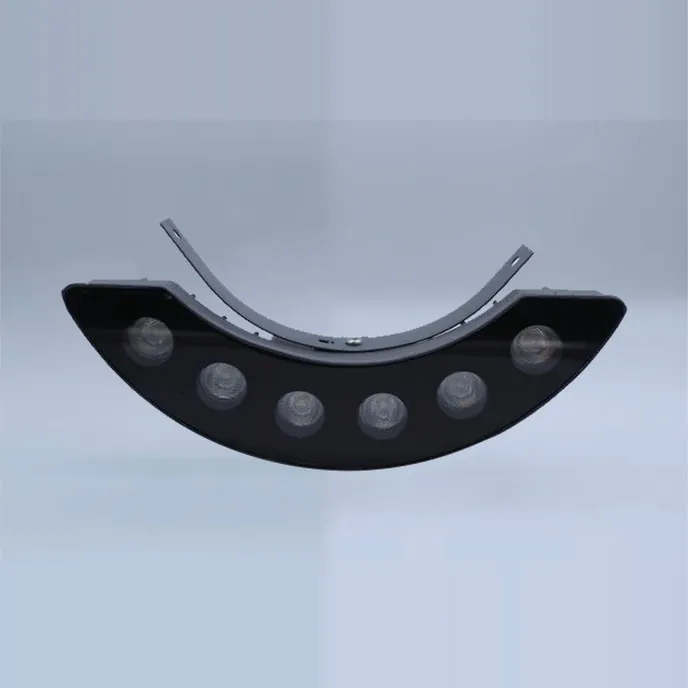

LED Roof-Tile (Corrugated) Light 3–9 W
Curved lights that sit on roof tiles and outline the eaves of traditional buildings.
- Curved to fit roof tiles
- 3 / 6 / 9 W
- Warm yellow (1800–2000 K) or warm white (2700–3000 K)
- IP65, impact, UV and dust resistant
Specifications
| Models | BG-WLL2403 / 2406 / 2409 |
|---|---|
| Power | 3 / 6 / 9 W |
| Size | 100 / 130 / 150 mm |
| Input voltage | DC 24 V |
| Power factor | > 0.9 |
| Colour temperature | 1800–2000 K yellow, 2700–6500 K |
| CRI | Ra 70–90 |
| Ingress protection | IP65 |
| Material | Aluminium + tempered glass |
Values are nominal. Custom wattages, colour temperatures, optics and input voltages are available — ask for the full datasheet and IES file.
