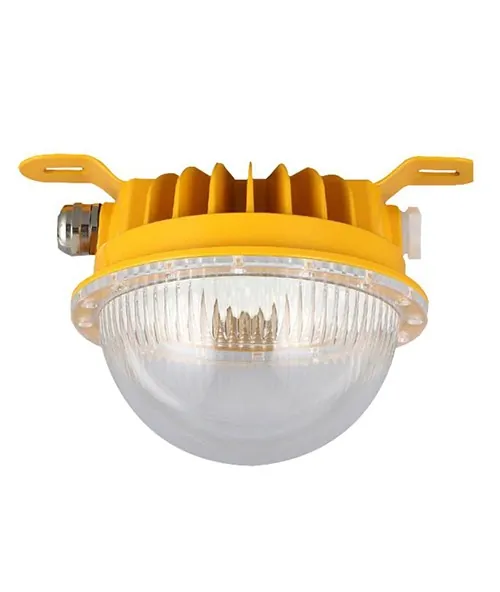

Explosion-Proof LED Ceiling Light 15–30 WExplosion-Proof LED Ceiling Light 15–30 W — view 2

Model BAD8501B

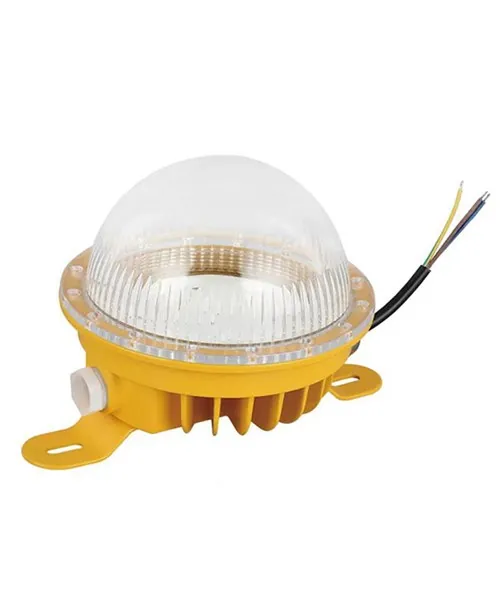

Explosion-Proof LED Ceiling Light 15–30 W

A compact flameproof ceiling light for pump rooms, corridors, stairwells and control rooms in Zone 1 and Zone 2 areas.

  • Ex d IIC T6 Gb / Ex tD A21 IP66 T80 °C
  • 15, 20, 25 and 30 W versions
  • High-strength clear PC cover that resists impact and thermal shock, with low glare
  • Separate cooling paths for the LED and driver chambers
  • Potted driver for heat dissipation and corrosion resistance
  • All exposed fasteners in 304 stainless steel
Request price & datasheet See specifications

Specifications

ModelsBAD8501B-15 / -20 / -25 / -30
Rated power15 / 20 / 25 / 30 W
Ex markingEx d IIC T6 Gb / Ex tD A21 IP66 T80 °C
Input voltageAC/DC 220 V, 50 Hz (DC 24 V or AC/DC 36 V on request)
Power factor0.95
Luminous efficacy≥ 120 lm/W
Colour temperature3000–6500 K
Ingress protectionIP66
Corrosion classWF1 / WF2
DimensionsØ150 × 140 mm
Weight1.1 kg
Cable entryG3/4" for Ø10–14 mm cable
MountingCeiling (pendant on request)
Rated life100,000 h
StandardsGB 3836.1, GB 3836.3, IEC 60079-0, IEC 60079-1, EN 60079-0, EN 60079-1

Values are nominal. Custom wattages, colour temperatures, optics and input voltages are available — ask for the full datasheet and IES file.

The BAD8501B is a small, light flameproof luminaire for places where a floodlight would be too much: indoor rooms and walkways inside hazardous areas. Its reflector is designed for even illumination without hot spots. The LED chamber and the driver chamber are cooled separately, so heat from one does not shorten the life of the other.

Applications

  • Pump rooms and compressor houses
  • Corridors, stairwells and control rooms in hazardous areas
  • Battery rooms and chemical storage
  • Fuel station shops and service rooms
