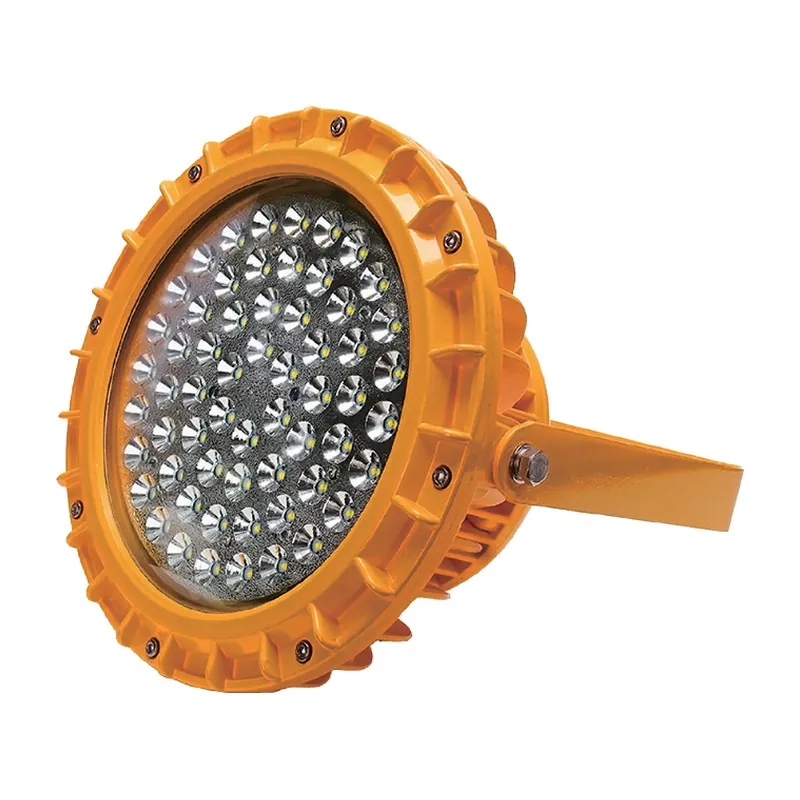

Model BDE507
A compact round flameproof light for gas group IIC, for pump rooms, walkways and process areas.
| Models | BDE507-20 / 30 / 40 / 50 / 60 / 70 |
|---|---|
| Power | 20 / 30 / 40 / 50 / 60 / 70 W |
| Ex marking | Ex d IIC T6 Gb |
| Input voltage | AC 85–265 V, 47/63 Hz |
| Power factor | > 0.95 |
| Luminous efficacy | 110 lm/W |
| Colour temperature | 3000 / 4000 / 5000 / 6000 K |
| CRI | Ra 70–90 |
| Beam angle | 60° / 90° / 120° |
| Ingress protection | IP66 |
| Corrosion grade | WF2 |
| Material | High-pressure die-cast aluminium, powder coated; galvanised bracket |
| Operating temperature | −30 °C to +50 °C |
| Rated life | > 80,000 h |
Values are nominal. Custom wattages, colour temperatures, optics and input voltages are available — ask for the full datasheet and IES file.
| Models | Power (W) | Size (mm) | Weight (kg) |
|---|---|---|---|
| BDE507-20 – 40 | 20 / 30 / 40 | Ø220 × 270 | 5.5 |
| BDE507-50 – 70 | 50 / 60 / 70 | Ø260 × 285 | 6.6 |
The explosion-proof certificate for this series is supplied with the quotation.
