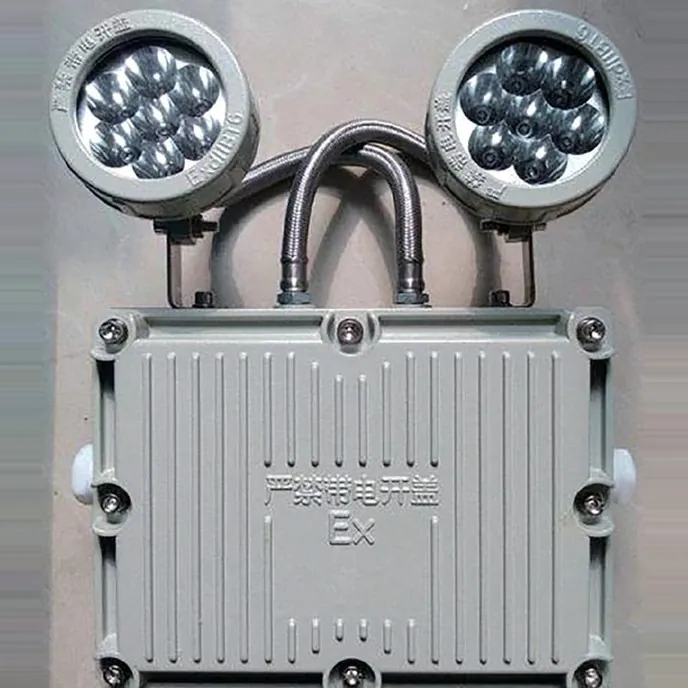

Model BG-FBYJ10A
Twin-head emergency light for escape routes in hazardous areas, with 2 hours of battery backup.
| Model | BG-FBYJ10A |
|---|---|
| Power | 10 W |
| Size | 260 × 80 × 260 mm |
| Input voltage | AC 85–265 V, 47/63 Hz |
| Power factor | > 0.97 |
| Colour temperature | 2700–6000 K |
| CRI | Ra 80 |
| Ex marking | Ex d IIC T4 |
| Beam angle | 30° |
| Emergency time | 2 h |
| Luminous efficacy | > 80 lm/W |
| Material | Die-cast aluminium |
| Operating temperature | −30 °C to +50 °C |
| Rated life | > 50,000 h |
Values are nominal. Custom wattages, colour temperatures, optics and input voltages are available — ask for the full datasheet and IES file.
When the mains fails, the light switches to its internal battery and keeps the escape route lit for two hours. The explosion-proof certificate for this model is supplied with the quotation.
Request a quote
Tell us the quantity and where the lights will be installed. We reply by email within one working day.
