Applications
- Open-plan offices
- Internet cafés and study rooms
- Shopping malls and exhibition rooms

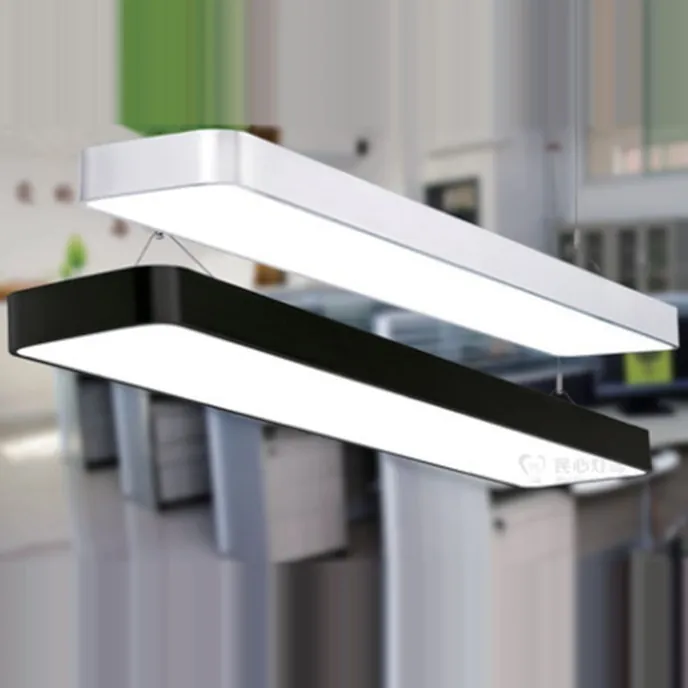

Model BG-TXH
LED Linear Pendant Light 24–60 W
1.2 m aluminium linear lights that can be joined into continuous lines over desks and corridors.
- 1200 mm long, 24 / 36 / 60 W
- Anodised aluminium body, frosted acrylic diffuser
- Soft light without glare
- Pendant or surface mounting
Specifications
| Models | BG-TXH24 / 36 / 60 |
|---|---|
| Power | 24 / 36 / 60 W |
| Size | 1200 × 100 × 60 / 1200 × 200 × 60 / 1200 × 300 × 60 mm |
| Input voltage | AC 100–240 V, 50/60 Hz |
| Power factor | > 0.9 |
| Colour temperature | 3000–6000 K |
| CRI | Ra 70–90 |
| LED | SMD2835 |
| Beam angle | 120° |
| Luminous efficacy | 90 lm/W |
| Material | Aluminium + acrylic |
| Rated life | 50,000 h |
Values are nominal. Custom wattages, colour temperatures, optics and input voltages are available — ask for the full datasheet and IES file.
Request a quote
Price, datasheet and lead time for BG-TXH
Tell us the quantity and where the lights will be installed. We reply by email within one working day.
