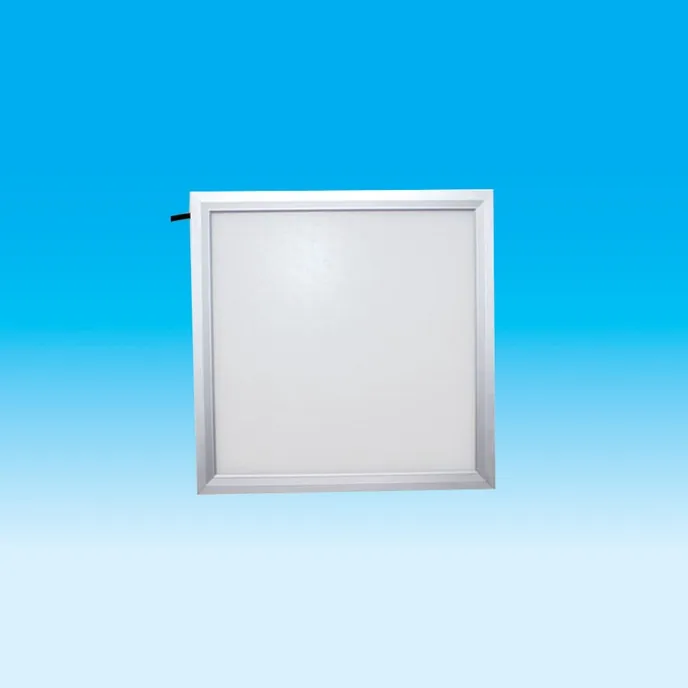

Model BG-MBC
Edge-lit flat panels in the four standard ceiling sizes for offices, schools and public buildings.
| Models | BG-MBC12 / 18 / 24 / 36 / 48 |
|---|---|
| Power | 12 / 18 / 24 / 36 / 48 W |
| Input voltage | AC 200–240 V, 50/60 Hz (100–240 V on request) |
| Power factor | > 0.9 |
| Colour temperature | 3000–6000 K |
| CRI | Ra 70–90 |
| LED | SMD4014 |
| Beam angle | 120° |
| Luminous efficacy | 90 lm/W |
| Material | Aluminium frame |
| Operating temperature | −30 °C to +50 °C |
| Rated life | 50,000 h |
Values are nominal. Custom wattages, colour temperatures, optics and input voltages are available — ask for the full datasheet and IES file.
| Model | Power (W) | Size (mm) |
|---|---|---|
| BG-MBC12 | 12 | 300 × 300 |
| BG-MBC18 | 18 | 300 × 300 |
| BG-MBC24 | 24 | 300 × 600 |
| BG-MBC36 | 36 | 600 × 600 |
| BG-MBC48 | 48 | 600 × 1200 |
For classrooms and offices that need low glare and flicker-free light, see the 36 W low-glare panel.
Request a quote
Tell us the quantity and where the lights will be installed. We reply by email within one working day.
