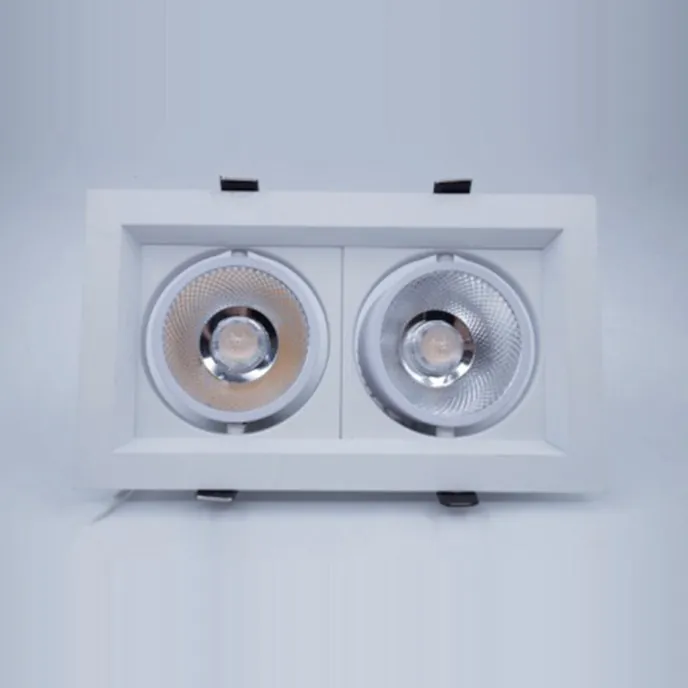

Model BG-DDT
Twin adjustable heads in a recessed frame, for shop and gallery accent lighting.
| Models | BG-DDT06 … BG-DDT60 |
|---|---|
| Power | 2×3 / 2×5 / 2×7 / 2×9 / 2×12 / 2×15 / 2×20 / 2×30 W |
| Input voltage | AC 200–240 V, 50/60 Hz (100–240 V on request) |
| Power factor | > 0.9 |
| Colour temperature | 3000–6000 K |
| CRI | Ra 70–90 |
| LED | COB |
| Beam angle | 25° / 30° |
| Luminous efficacy | 90 lm/W |
| Material | Aluminium |
| Operating temperature | −30 °C to +50 °C |
| Rated life | 50,000 h |
Values are nominal. Custom wattages, colour temperatures, optics and input voltages are available — ask for the full datasheet and IES file.
| Model | Power | Size (mm) |
|---|---|---|
| BG-DDT06 | 2 × 3 W | 220 × 130 |
| BG-DDT10 | 2 × 5 W | 250 × 140 |
| BG-DDT14 | 2 × 7 W | 250 × 140 |
| BG-DDT18 | 2 × 9 W | 315 × 170 |
| BG-DDT24 | 2 × 12 W | 315 × 170 |
| BG-DDT30 | 2 × 15 W | 335 × 185 |
| BG-DDT40 | 2 × 20 W | 375 × 185 |
| BG-DDT60 | 2 × 30 W | 375 × 185 |
