Model BG-TDT

LED Downlight 5–24 W

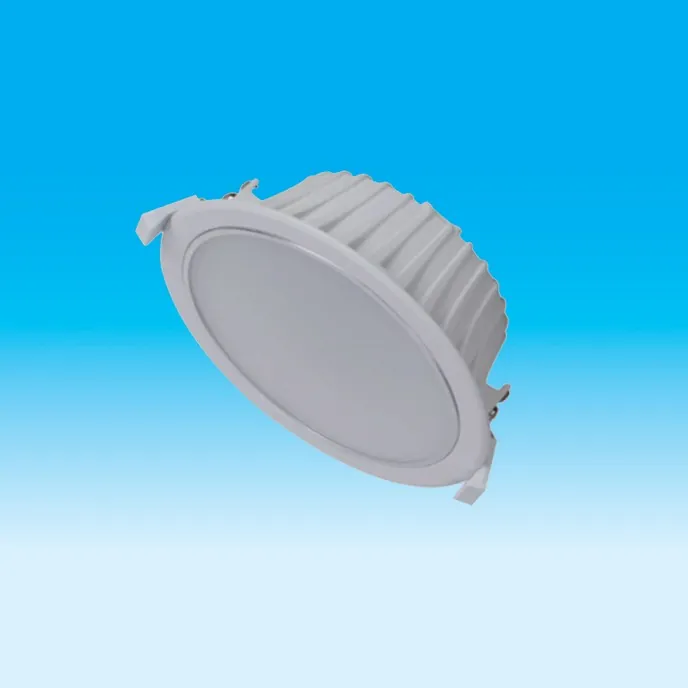

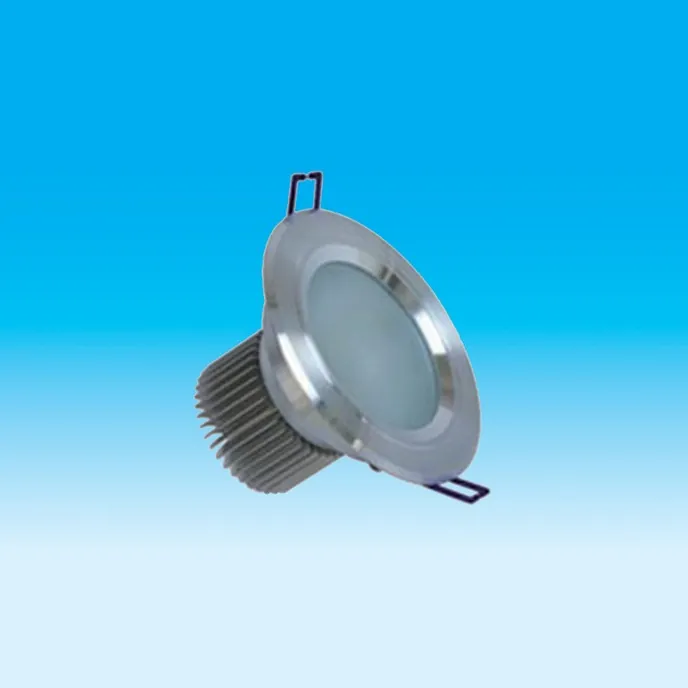

Recessed downlights from 5 W to 24 W, plus surface-mounted cylinders for open ceilings.

  • 5 W to 24 W, cut-out 75–170 mm
  • Die-cast aluminium heat sink

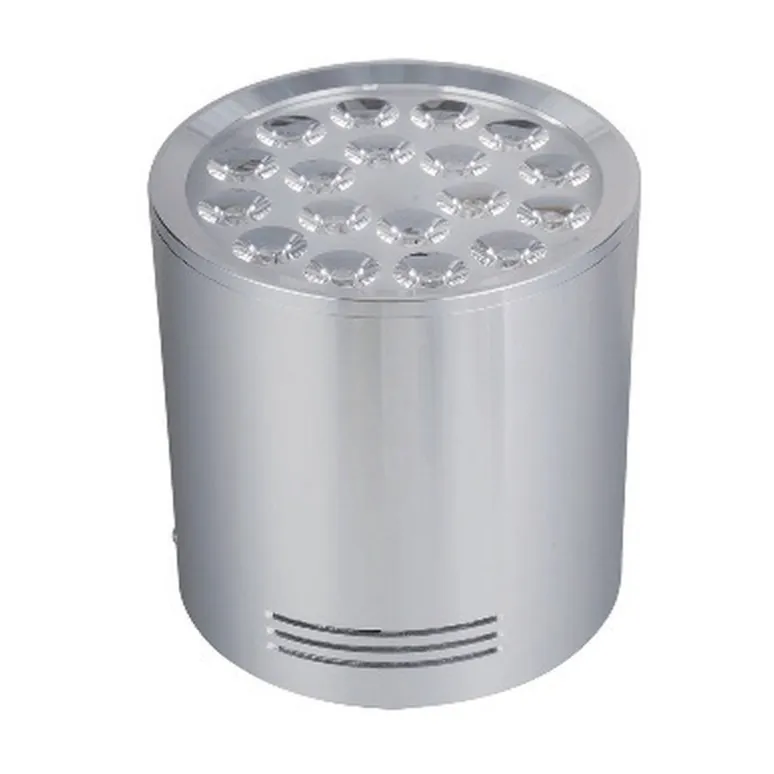

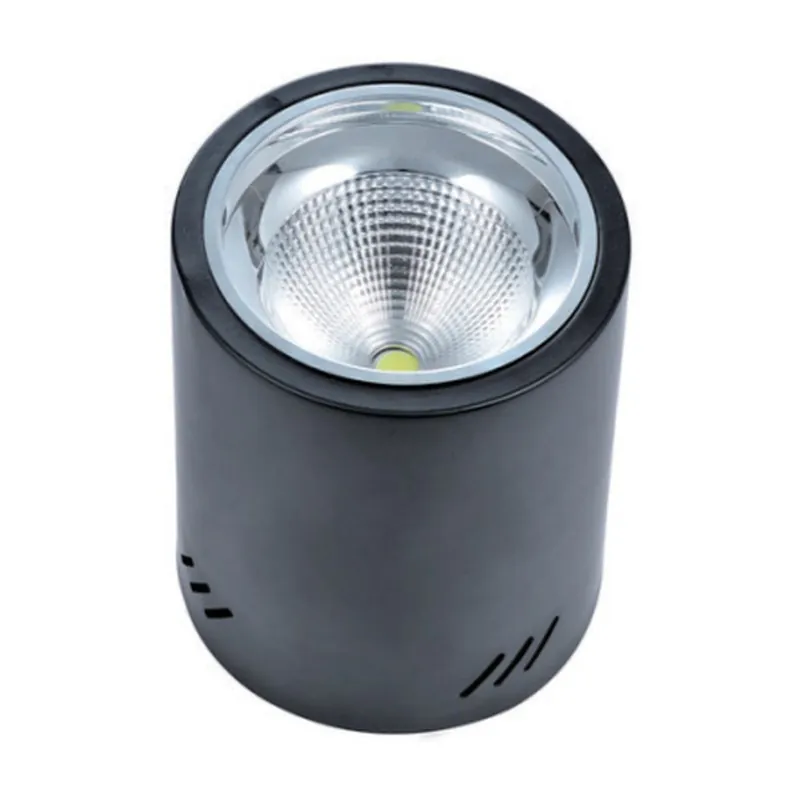

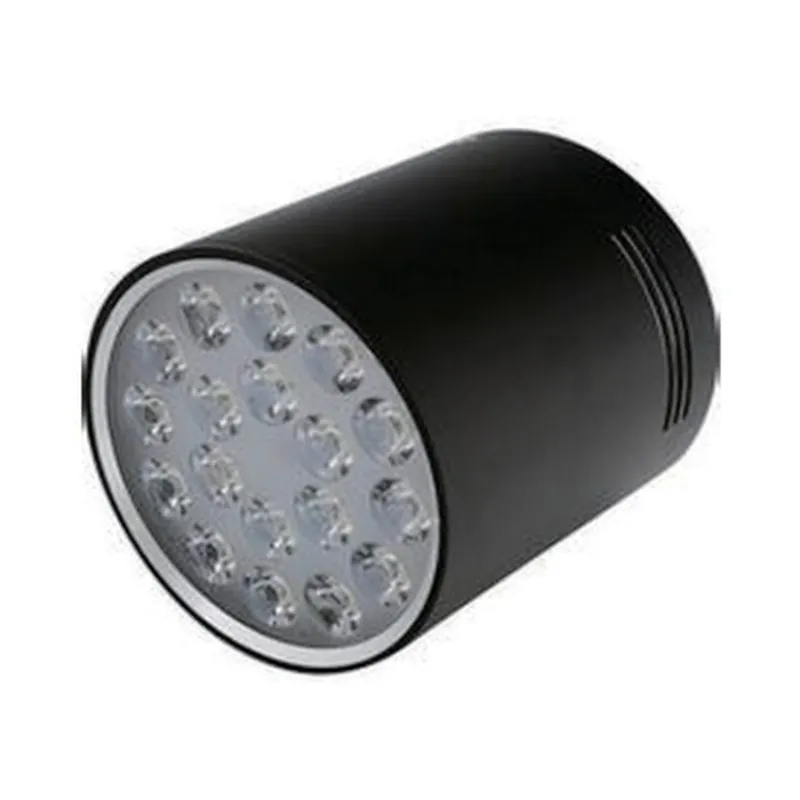

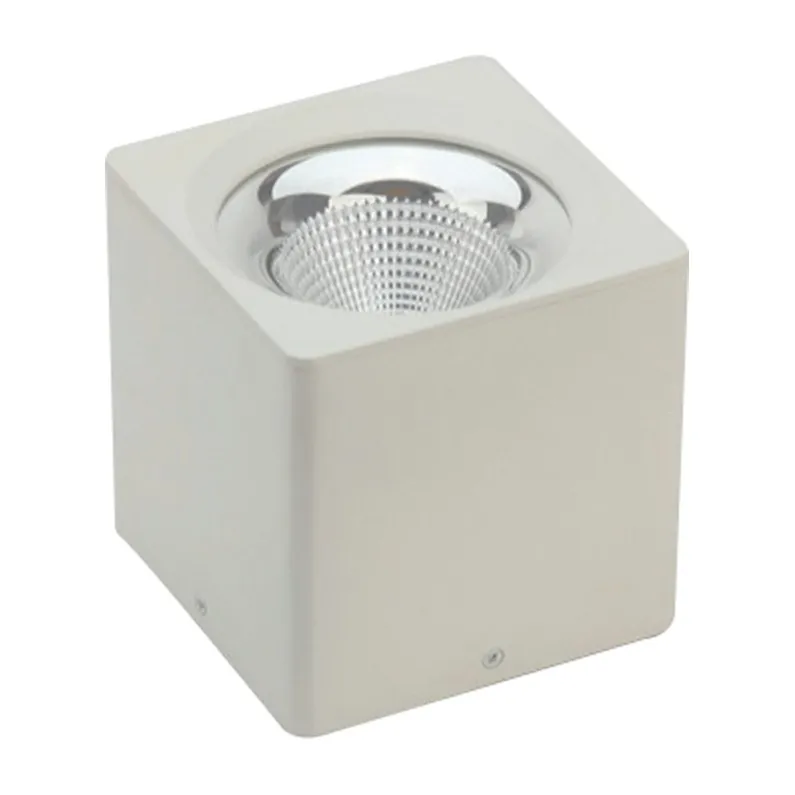

  • Surface-mounted cylinder and square versions
  • Ra 70–90
Request price & datasheet See specifications

Specifications

ModelsBG-TDT05A … BG-TDT24A
Power5 / 7 / 9 / 12 / 15 / 18 / 24 W
Input voltageAC 200–240 V, 50/60 Hz (100–240 V on request)
Power factor> 0.9
Colour temperature3000–6000 K
CRIRa 70–90
LEDSMD5730
Beam angle90°
Luminous efficacy90 lm/W
MaterialDie-cast aluminium
Operating temperature−30 °C to +50 °C
Rated life30,000 h

Values are nominal. Custom wattages, colour temperatures, optics and input voltages are available — ask for the full datasheet and IES file.

Sizes

Model Power (W) Outer diameter (mm) Cut-out (mm)
BG-TDT05A 5 98 75
BG-TDT07A 7 110 85
BG-TDT09A 9 120 95
BG-TDT12A 12 145 120
BG-TDT15A 15 180 145
BG-TDT18A 18 180 145
BG-TDT24A 24 190 170

Applications

  • Shopping malls and supermarkets
  • Hotels and restaurants
  • Offices and meeting rooms
  • Department stores
