Applications
- Offices and meeting rooms
- Classrooms
- Hospitals and public buildings
Model BG-MBC…W36

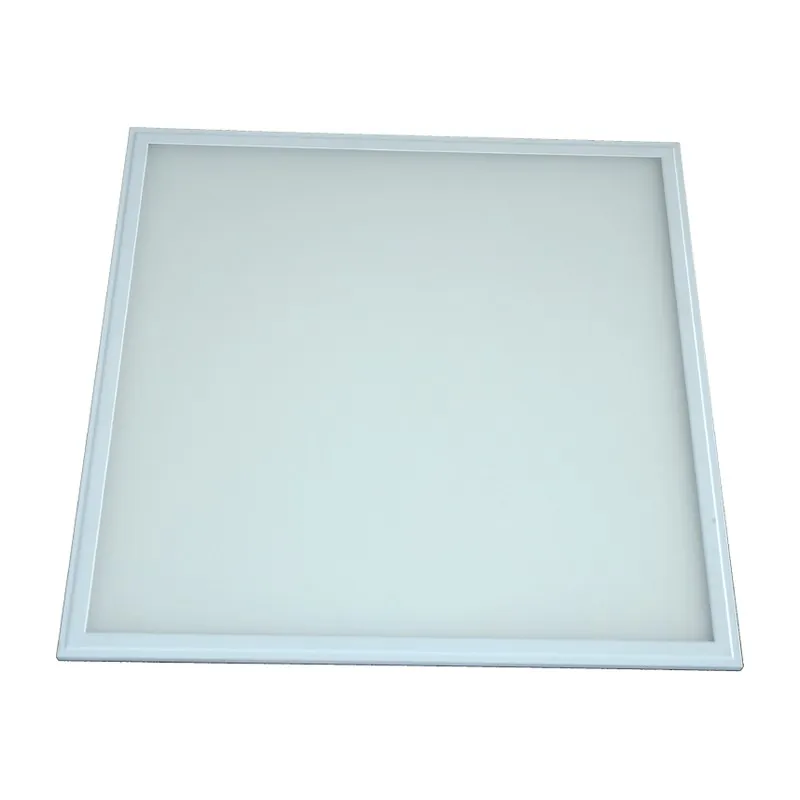

Low-Glare LED Panel 600×600, 36 W
A 36 W 600 × 600 panel with an anti-glare optic, for offices and classrooms.
- 595 × 595 mm, 36 W
- Up to 4320 lm, 120 lm/W
- Anti-glare optic, flicker-free
- Recessed, wire or rod mounting
Specifications
| Models | BG-MBC309W36 / 409W36 / 509W36 |
|---|---|
| Power | 36 W |
| Colour temperature | 3000 / 4000 / 5000 K |
| Luminous flux | 4140 lm (3000 K) / 4320 lm (4000 K, 5000 K) |
| Luminous efficacy | 115–120 lm/W |
| CRI | Ra 80 |
| Beam angle | 90° |
| Input voltage | AC 220–240 V, 50/60 Hz |
| Size | 595 × 595 mm |
Values are nominal. Custom wattages, colour temperatures, optics and input voltages are available — ask for the full datasheet and IES file.
Request a quote
Price, datasheet and lead time for BG-MBC…W36
Tell us the quantity and where the lights will be installed. We reply by email within one working day.
