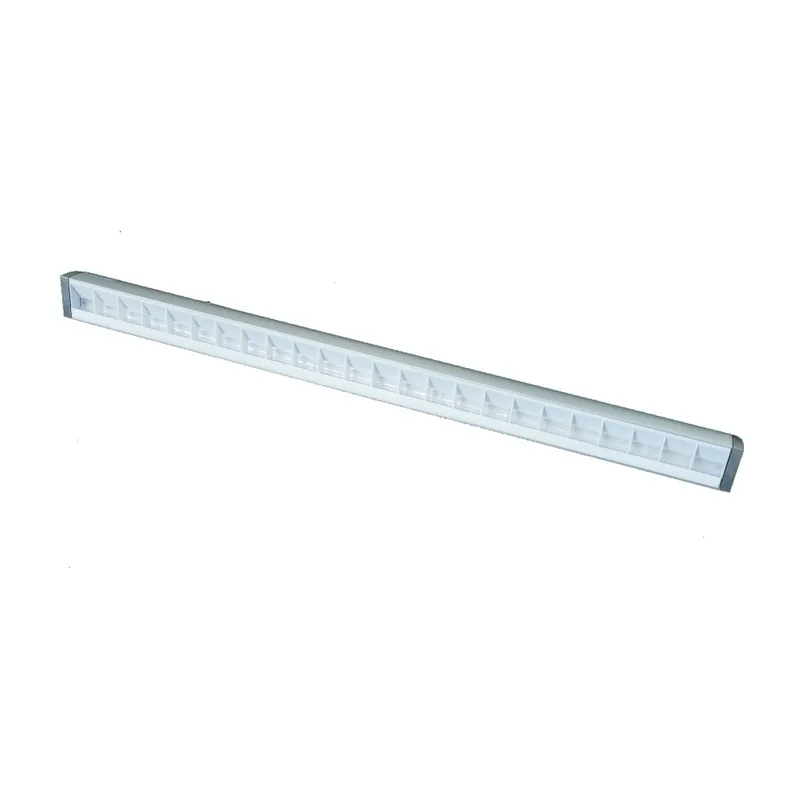

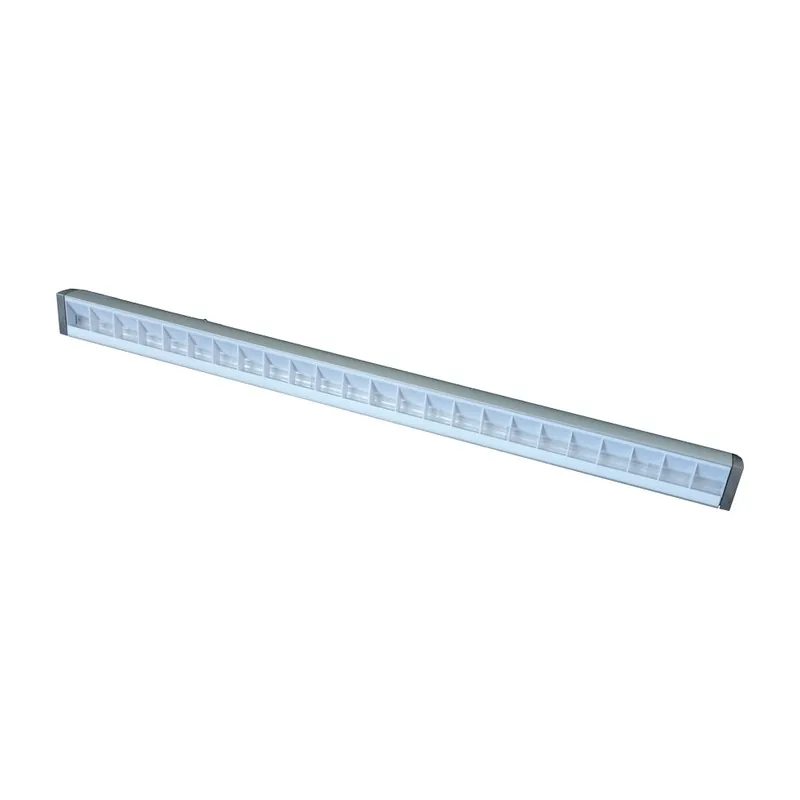

Model BG-HBC
An asymmetric light that lights the board evenly without shining into students’ or the teacher’s eyes.
| Models | BG-HBC40936 (4000 K) / BG-HBC50936 (5000 K) |
|---|---|
| Power | 36 W |
| Luminous flux | 2800 lm |
| Driver | PF > 0.95 |
| Input voltage | AC 165–265 V, 50/60 Hz |
| Flicker | < 1 % |
| Colour tolerance | < 3 SDCM |
| Glare (UGR) | < 16 |
| Luminous efficacy | 78 lm/W |
| Colour temperature | 4000 K / 5000 K |
| CRI | Ra > 90 |
| Beam | Asymmetric 30° |
| Optic | PMMA lens |
| Size | 1198 × 90 × 40 mm |
Values are nominal. Custom wattages, colour temperatures, optics and input voltages are available — ask for the full datasheet and IES file.

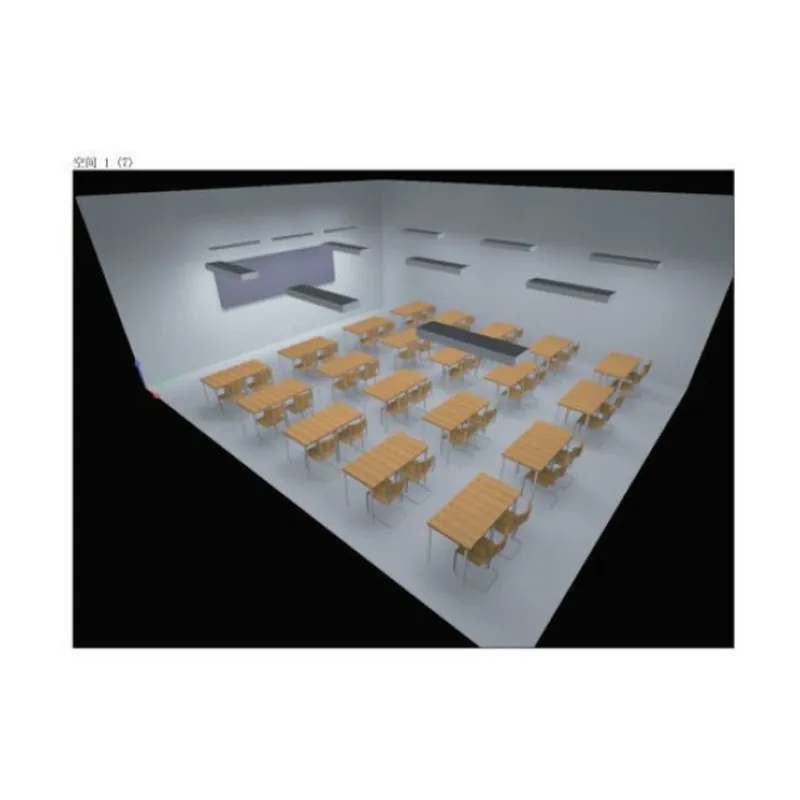

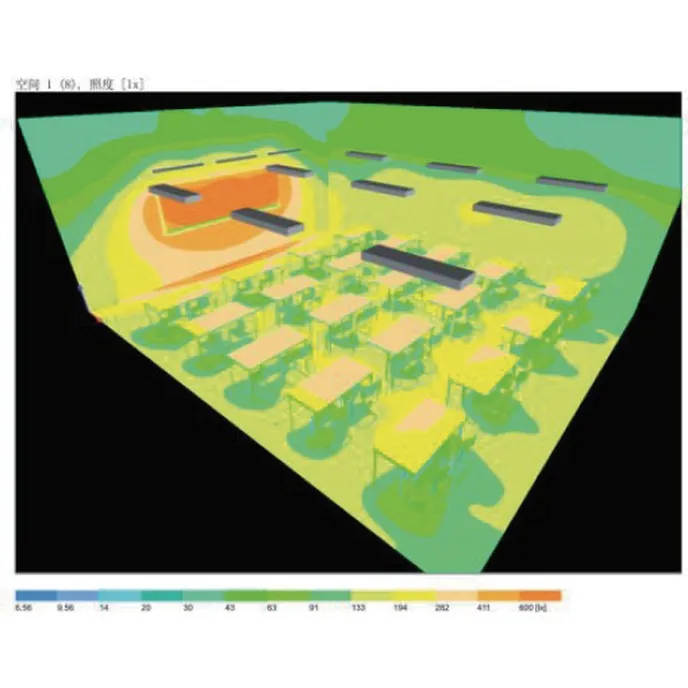

The board needs 500 lx with uniformity of at least 0.8. A symmetric light mounted in front of the board either leaves the lower edge dark or glares into the room. The asymmetric optic throws the light onto the board surface from above.
Request a quote
Tell us the quantity and where the lights will be installed. We reply by email within one working day.
Email us
[email protected]Tell us the product, quantity, site location and any drawings or specifications. An engineer reads every email and we reply within one working day (China time, GMT+8).
