Model BG-GDO

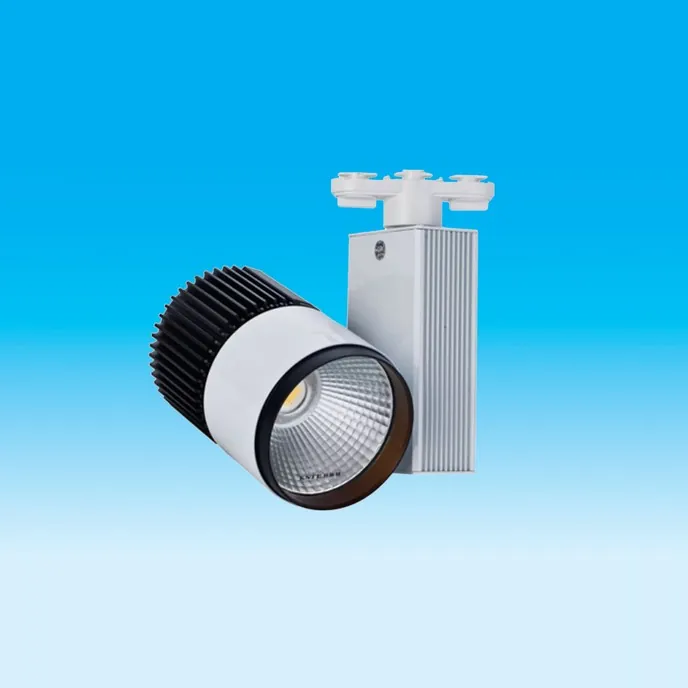

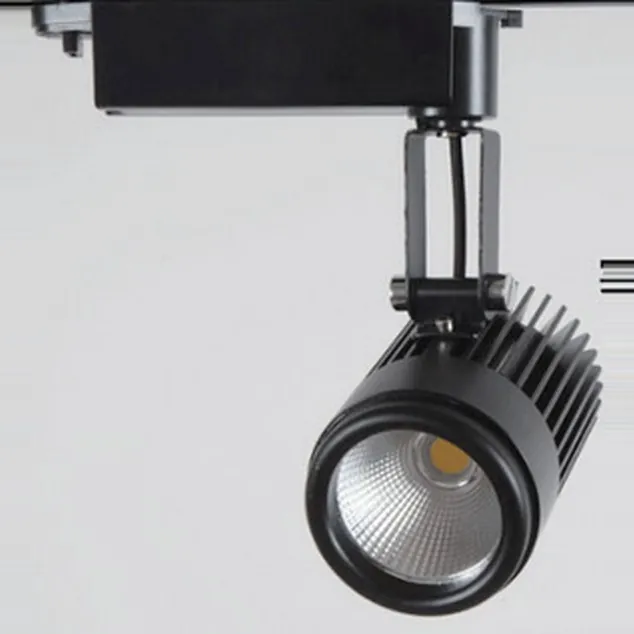

Adjustable COB track spotlights for shops, showrooms and galleries.
| Models | BG-GDO03 … BG-GDO18 |
|---|---|
| Power | 3 / 5 / 7 / 9 / 12 / 15 / 18 W |
| Input voltage | AC 200–240 V, 50/60 Hz (100–240 V on request) |
| Power factor | > 0.9 |
| Colour temperature | 3000–6000 K |
| CRI | Ra 70–90 |
| LED | COB |
| Beam angle | 25° |
| Luminous efficacy | 90 lm/W |
| Material | Die-cast aluminium |
| Rated life | 50,000 h |
Values are nominal. Custom wattages, colour temperatures, optics and input voltages are available — ask for the full datasheet and IES file.
| Model | Power (W) | Size (mm) |
|---|---|---|
| BG-GDO03 | 3 | 53 × 85 |
| BG-GDO05 | 5 | 71 × 110 |
| BG-GDO07 | 7 | 71 × 110 |
| BG-GDO09 | 9 | 100 × 153 |
| BG-GDO12 | 12 | 100 × 153 |
| BG-GDO15 | 15 | 115 × 153 |
| BG-GDO18 | 18 | 115 × 153 |
Request a quote
Tell us the quantity and where the lights will be installed. We reply by email within one working day.
