Applications
- Offices
- Schools
- Shopping malls
- Hospitals
Model BG-DPT8A

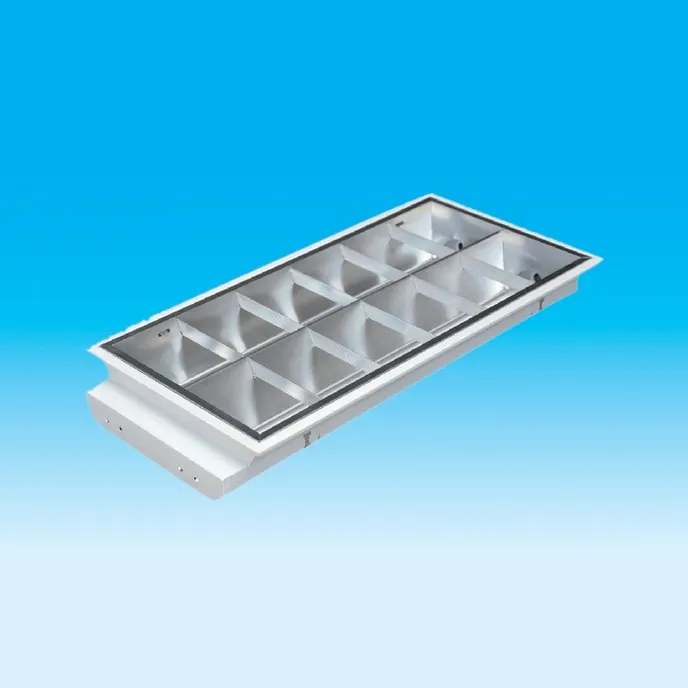

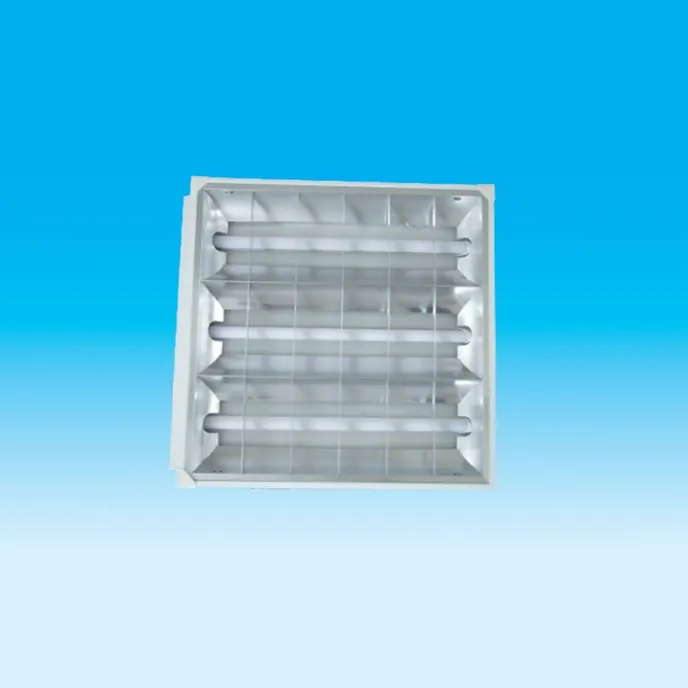

LED Grille Troffer 600×600 & 1200×600
Classic louvred troffers fitted with LED T8 tubes, for grid ceilings.
- 600 × 600 (3 × 9 W) and 1200 × 600 (2 × 18 W)
- Mirror aluminium louvres control glare
- Powder-coated steel body
- Replaceable LED T8 tubes
Specifications
| Models | BG-DPT8A309 / BG-DPT8A218 |
|---|---|
| Power | 27 W (3 × 9 W) / 36 W (2 × 18 W) |
| Size | 600 × 600 / 1200 × 600 mm |
| Input voltage | AC 200–240 V, 50/60 Hz (100–240 V on request) |
| Power factor | > 0.9 |
| Colour temperature | 3000–6000 K |
| CRI | Ra 70–90 |
| Beam angle | 120° |
| Luminous efficacy | 90 lm/W |
| Rated life | 50,000 h |
Values are nominal. Custom wattages, colour temperatures, optics and input voltages are available — ask for the full datasheet and IES file.
