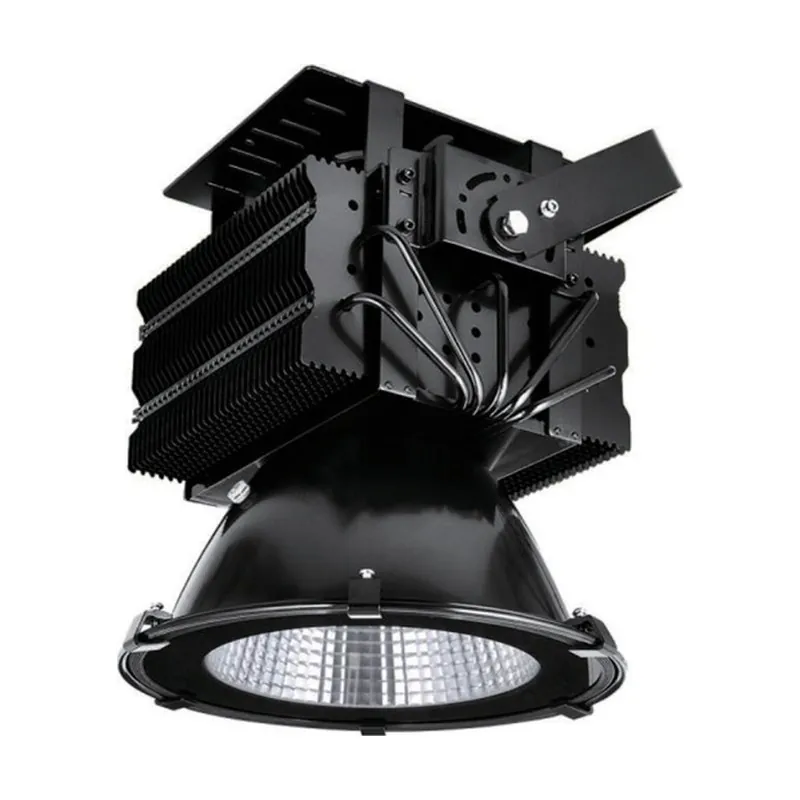

LED Stadium Lights 200–1500 W, Heat-Pipe, IP67

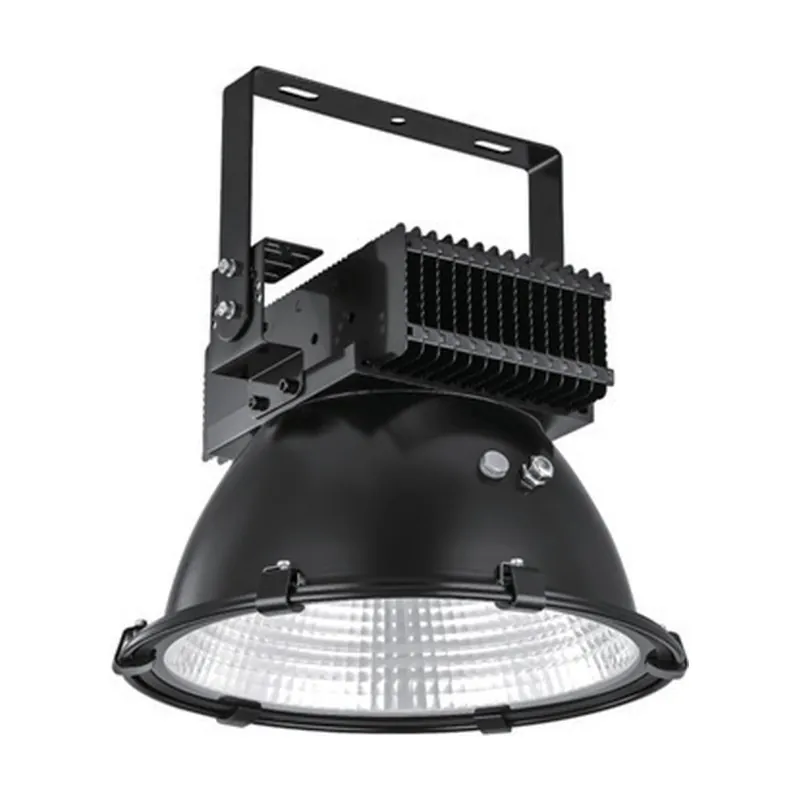

LED Stadium Lights 200–1500 W, Heat-Pipe, IP67 — view 2

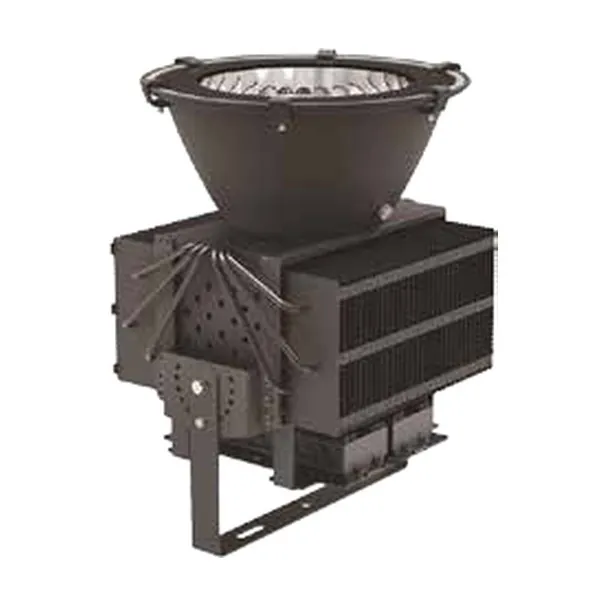

LED Stadium Lights 200–1500 W, Heat-Pipe, IP67 — view 3

Model BG-TZ…H / BG-TS…H

LED Stadium Lights 200–1500 W, Heat-Pipe, IP67

Our LED stadium lights, also used on ports and airport aprons: copper heat pipes, IP67, stainless hardware and narrow beams for long throws.

200 W to 1500 W in six sizes
Copper heat pipes riveted to aluminium fins for cooling
IP67 with a breather valve against condensation
Faceted high-purity aluminium reflectors 25° / 40° / 60° / 90°
216° adjustable bracket for aiming
Stainless hardware that passed a 500 h salt spray test

Request price & datasheet See specifications

Specifications

Models	Stadium: BG-TZ200H … BG-TZ1K5H; Port / apron: BG-TS200H … BG-TS1K5H
Power	200 / 400 / 500 / 800 / 1000 / 1500 W
Input voltage	AC 85–264 V, 47/63 Hz
Power factor	> 0.97
Luminous efficacy	> 110 lm/W (BG-TZ) / > 130 lm/W (BG-TS)
Colour temperature	3000 / 4000 / 5000 / 6000 K
CRI	Ra 70 / 80 / 90
Beam angle	25° / 40° / 60° / 90°
Ingress protection	IP67
Material	Copper heat pipes + aluminium body + galvanised steel bracket
Wind resistance	Wind-tunnel tested to Beaufort force 17
Operating temperature	−30 °C to +50 °C
Rated life	> 80,000 h

Values are nominal. Custom wattages, colour temperatures, optics and input voltages are available — ask for the full datasheet and IES file.

For mounting heights above 20 m, beam control and heat matter more than anything else. This floodlight uses copper heat pipes to carry heat from the LED board into a large fin array, and faceted aluminium reflectors to put the light where it is needed.

Sizes and weights

Power	Stadium model	Port model	Size (mm)	Weight (kg)
200 W	BG-TZ200H	BG-TS200H	450 × 370	10.5
400 W	BG-TZ400H	BG-TS400H	480 × 370	13.2
500 W	BG-TZ500H	BG-TS500H	520 × 370	15.4
800 W	BG-TZ800H	BG-TS800H	480 × 630	28.2
1000 W	BG-TZ1K0H	BG-TS1K0H	560 × 630	32.2
1500 W	BG-TZ1K5H	BG-TS1K5H	650 × 630	41.8

The same housing is used for the indoor heat-pipe high bay, which carries wider reflectors.

Applications

Football, athletics and multi-sport stadiums
Ports, docks and container terminals
Airport aprons
High masts and large squares

Frequently asked questions

What is the difference between BG-TZ and BG-TS?

Both use the same heat-pipe body. The BG-TS port version uses higher-efficacy LEDs (> 130 lm/W) for long-throw use on masts; the BG-TZ stadium version can be supplied with high-CRI LEDs for broadcast or training needs.

Can you do a lighting layout for my stadium?

Yes. Send us the pitch size, pole positions and heights, and the level required (training, competition or TV), and we will return a photometric layout with average lux and uniformity.
