Model BG-TZ…M

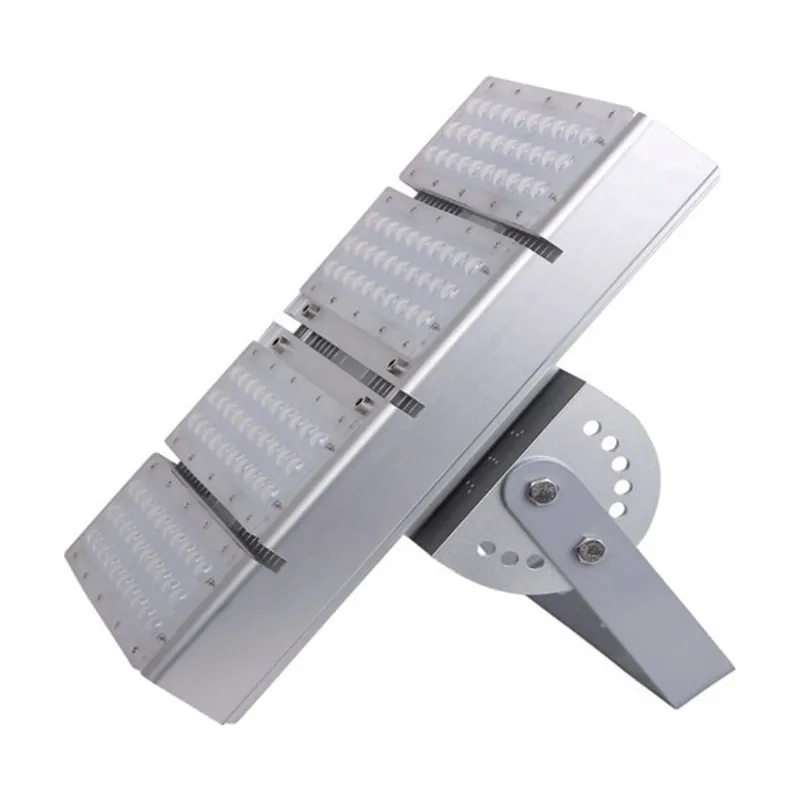

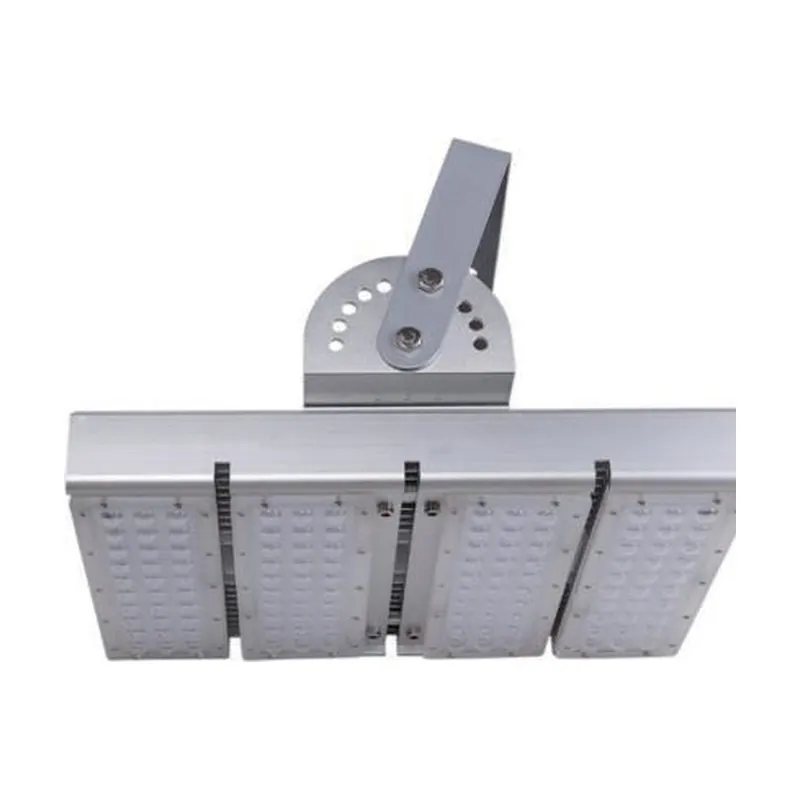

Module-based floodlight with asymmetric optics, for tennis, basketball and small football courts.
| Models | BG-TZ050M … BG-TZ300M |
|---|---|
| Power | 50 / 100 / 150 / 200 / 250 / 300 W |
| Input voltage | AC 85–264 V, 47/63 Hz |
| Power factor | > 0.97 |
| Luminous efficacy | > 100 lm/W |
| Colour temperature | 3000 / 4000 / 5000 / 6000 K |
| CRI | Ra 70 / 80 / 90 |
| Beam angle | 140° × 80° with 30° offset, or 155° × 80° |
| Ingress protection | IP65 |
| Material | ADC12 die-cast aluminium + 6063 aluminium + PMMA lens |
| Operating temperature | −30 °C to +50 °C |
| Rated life | > 80,000 h |
Values are nominal. Custom wattages, colour temperatures, optics and input voltages are available — ask for the full datasheet and IES file.
| Model | Power (W) | Size (mm) | Weight (kg) |
|---|---|---|---|
| BG-TZ050M | 50 | 290 × 232 × 116 | 2.0 |
| BG-TZ100M | 100 | 290 × 232 × 196 | 2.6 |
| BG-TZ150M | 150 | 290 × 232 × 277 | 3.2 |
| BG-TZ200M | 200 | 290 × 232 × 370 | 3.5 |
| BG-TZ250M | 250 | 290 × 232 × 451 | 4.4 |
| BG-TZ300M | 300 | 290 × 232 × 532 | 5.0 |
For full-size stadiums and high masts, see the heat-pipe stadium floodlight.
Poles stand at the edge of a court. An asymmetric lens throws the light forward across the court while keeping the luminaire flat, so players looking up see less glare and less light spills outside.
