Model TLZ30J

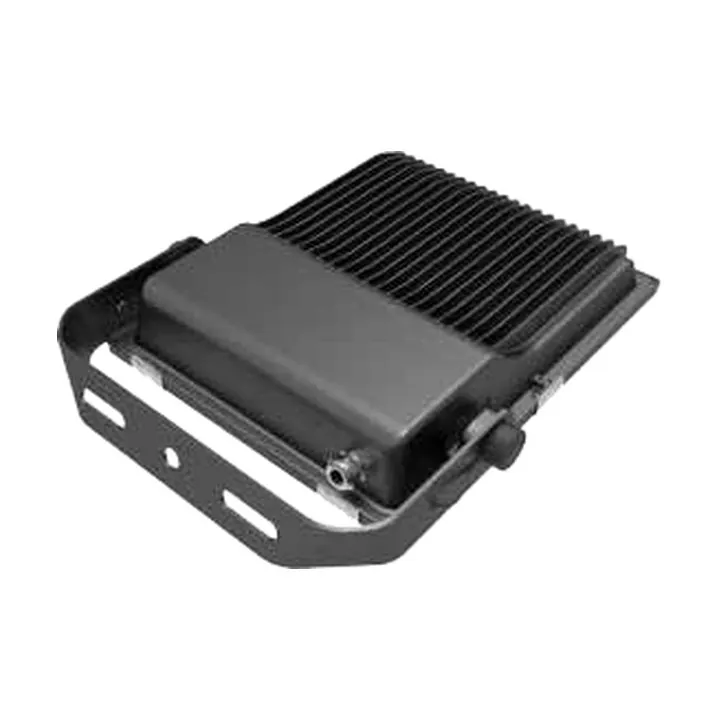

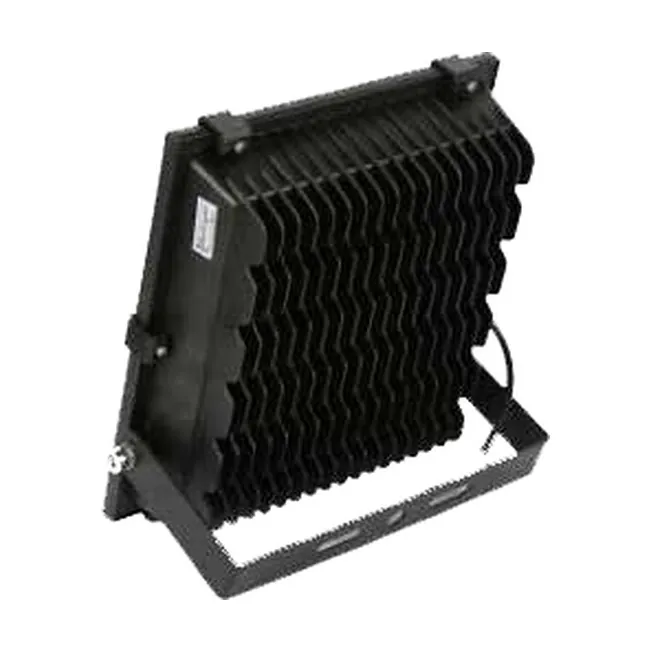

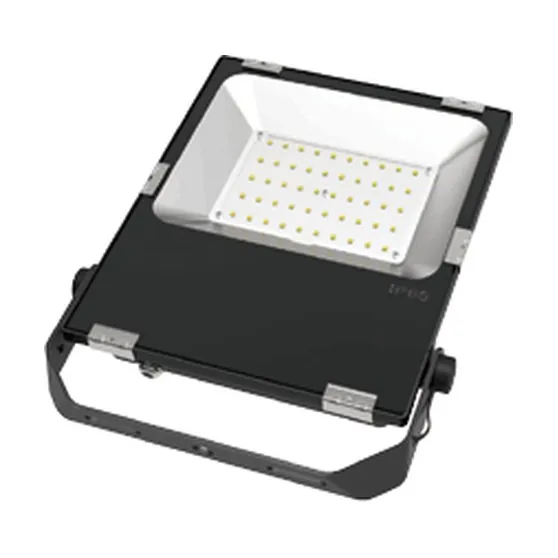

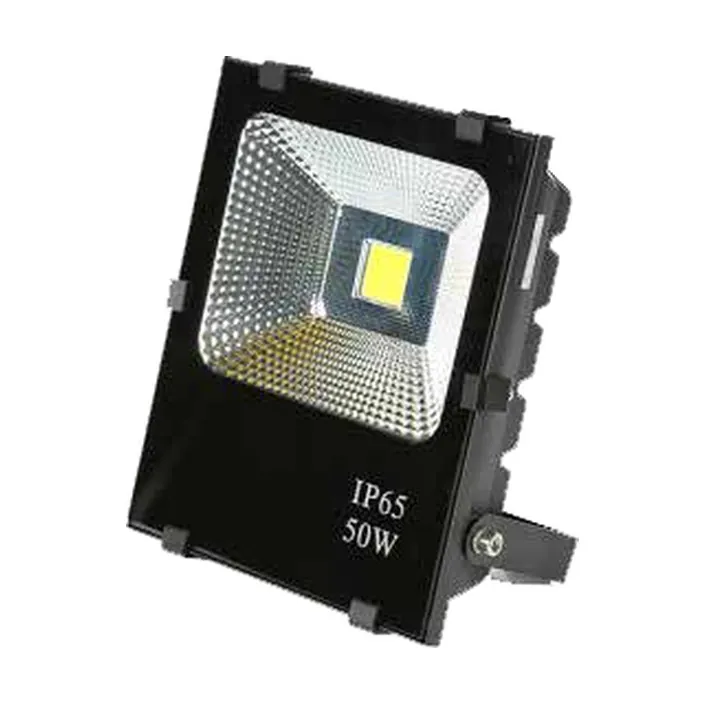

Slim LED Flood Light 50–200 W

A thin die-cast floodlight with a faceted reflector, for facades, billboards, yards and general area lighting.

50 W to 200 W, IP65
Faceted ("fish-scale") reflector, 90° or 120°
Die-cast aluminium with tempered glass
Black or white housing
Light and easy to install: 1.6–6.3 kg

Request price & datasheet See specifications

Specifications

Models	TLZ30J050 / 100 / 150 / 200
Power	50 / 100 / 150 / 200 W
Input voltage	AC 180–265 V, 47/63 Hz (100–277 V on request)
Power factor	> 0.90 (> 0.95 on the integrated-reflector version)
Luminous efficacy	> 100 lm/W
Colour temperature	3000 / 4000 / 5000 / 6000 K
CRI	Ra 70 / 80 / 90
Beam angle	90° or 120°
Ingress protection	IP65
Material	Die-cast aluminium, tempered glass, aluminium reflector
Operating temperature	−30 °C to +50 °C
Rated life	> 50,000 h

Values are nominal. Custom wattages, colour temperatures, optics and input voltages are available — ask for the full datasheet and IES file.

The TLZ30J is a compact floodlight with a single LED source behind a faceted aluminium reflector. It comes in two housings with the same electrical ratings.

Sizes and weights

Model	Power (W)	Fish-scale reflector, size (mm) / weight (kg)	Integrated reflector, size (mm) / weight (kg)
TLZ30J050	50	240 × 200 × 60 / 1.63	310 × 220 × 50 / 1.92
TLZ30J100	100	270 × 250 × 75 / 2.86	402 × 295 × 60 / 4.02
TLZ30J150	150	340 × 305 × 85 / 4.94	430 × 330 × 60 / 4.92
TLZ30J200	200	340 × 305 × 125 / 6.27	470 × 360 × 60 / 6.16

Applications

Building facades and billboards
Yards, loading bays and car parks
Squares and stations
Short tunnels and underpasses

Frequently asked questions

What is the difference between the two housings?

The fish-scale version is deeper and better at controlling the beam; the integrated-reflector version is thinner and lighter for walls and billboards. The table lists both sizes.
