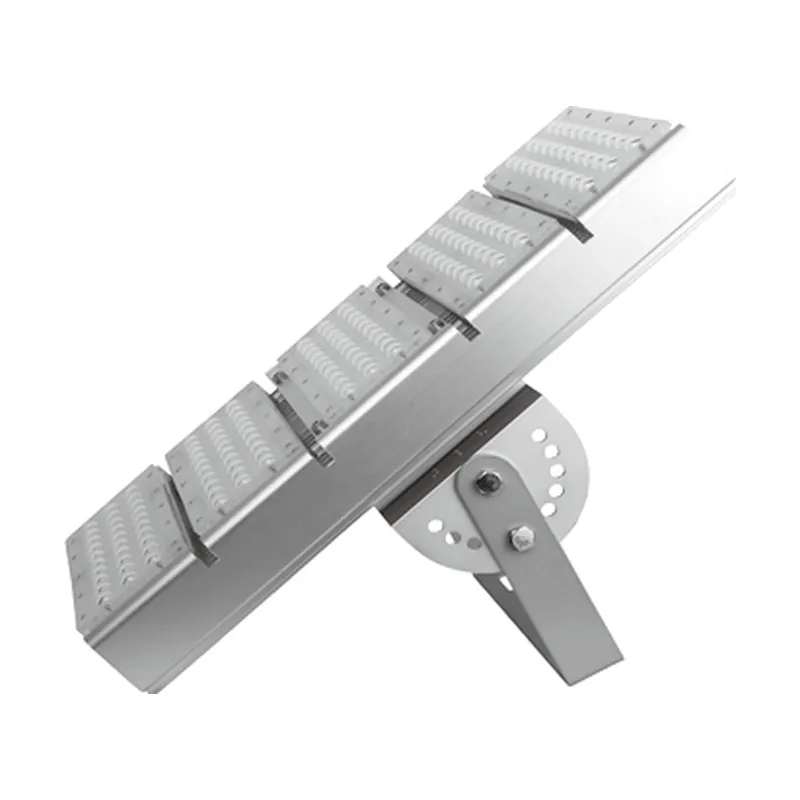

Modular LED Flood & Tunnel Light 50–300 W, IP67

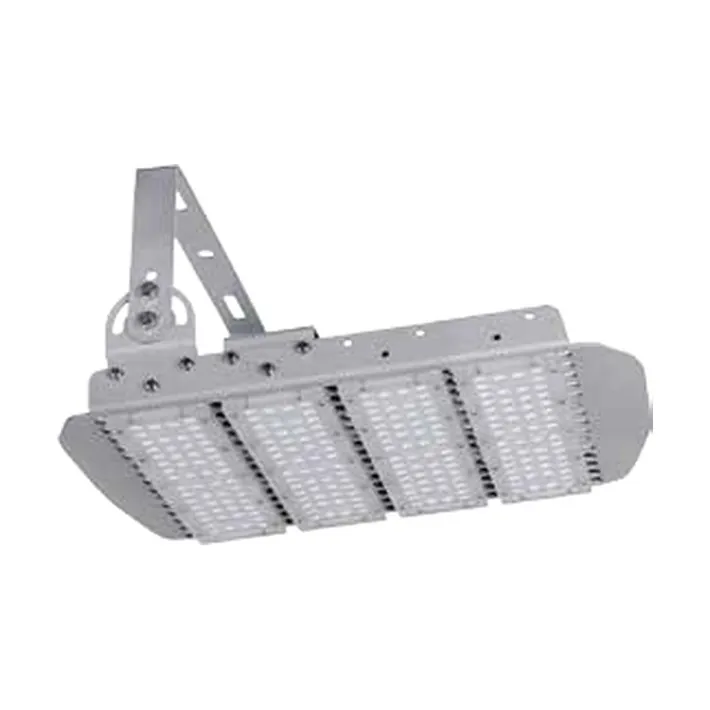

Modular LED Flood & Tunnel Light 50–300 W, IP67 — view 2

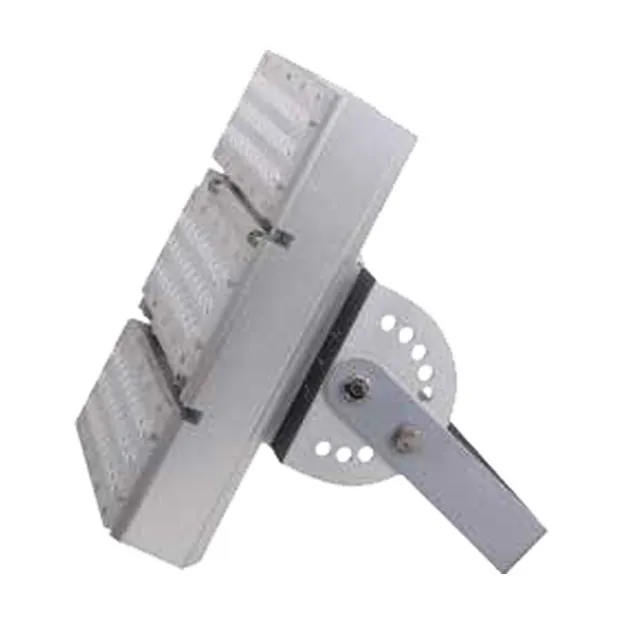

Modular LED Flood & Tunnel Light 50–300 W, IP67 — view 3

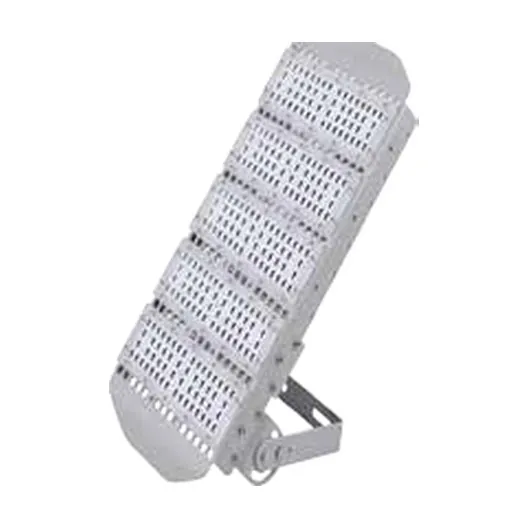

Modular LED Flood & Tunnel Light 50–300 W, IP67 — view 4

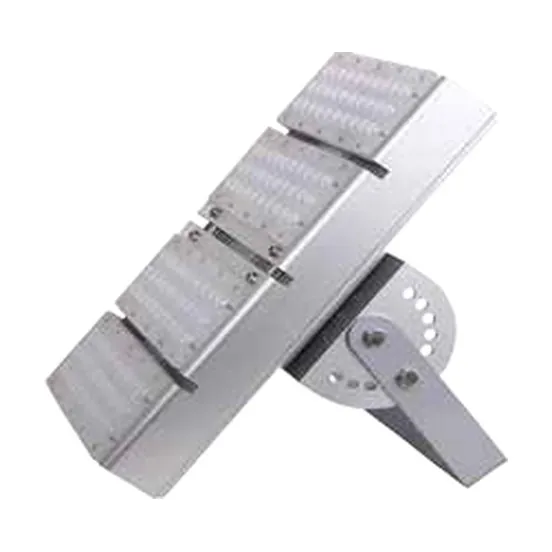

Modular LED Flood & Tunnel Light 50–300 W, IP67 — view 5

Model TLM30C

Modular LED Flood & Tunnel Light 50–300 W, IP67

One to six IP67 LED modules on a rotating bracket: a tunnel light, a square light or a floodlight from the same parts.

50 W to 300 W, one module per 50 W
IP67 modules, PF > 0.97, > 110 lm/W
6063 aluminium heat sinks, PMMA lenses
Rotatable bracket for any aiming angle
Also used as the module of our street and stadium lights, so spares are shared

Request price & datasheet See specifications

Specifications

Models	TLM30C050 … TLM30C300
Power	50 / 100 / 150 / 200 / 250 / 300 W
Input voltage	AC 185–264 V, 47/63 Hz (100–277 V on request)
Power factor	> 0.97
Luminous efficacy	> 110 lm/W
Colour temperature	3000 / 4000 / 5000 / 6000 K
CRI	Ra 70 / 80 / 90
Beam angle	140° × 80° (other lenses on request)
Ingress protection	IP67
Material	ADC12 die-cast aluminium + 6063 aluminium + PMMA lens
Operating temperature	−30 °C to +50 °C
Rated life	> 80,000 h

Values are nominal. Custom wattages, colour temperatures, optics and input voltages are available — ask for the full datasheet and IES file.

The TLM30C uses the same IP67 module as our modular street light, mounted on a rotating bracket. One module gives 50 W; six give 300 W. Because the module and driver are common across our road, tunnel and flood products, a project can keep one set of spare parts.

Sizes and weights

Model	Power (W)	Size (mm)	Weight (kg)
TLM30C050	50	115 × 290 × 232	2.55
TLM30C100	100	196 × 290 × 232	3.7
TLM30C150	150	227 × 290 × 232	4.76
TLM30C200	200	370 × 290 × 232	6.1
TLM30C250	250	451 × 290 × 232	7.23
TLM30C300	300	532 × 290 × 232	8.58

For sports grounds there is a version with asymmetric optics, the BG-TZ…M sports floodlight.

Applications

Road and railway tunnels
Squares and station forecourts
Ports, yards and logistics centres
Building and billboard floodlighting

Frequently asked questions

Can the same light be used in a tunnel and outdoors?

Yes. The modules are IP67 and the bracket mounts on a tunnel wall, a ceiling or a pole cross-arm.

Which lens do I need for a tunnel?

Tunnel lighting usually needs an asymmetric or counter-beam optic. Tell us the tunnel cross-section and speed limit, and we will propose lenses and spacing.
