Applications
- Shopping malls and hotels
- Factories and warehouses
- Car parks
- Schools and hospitals
Model BG-XFYJ

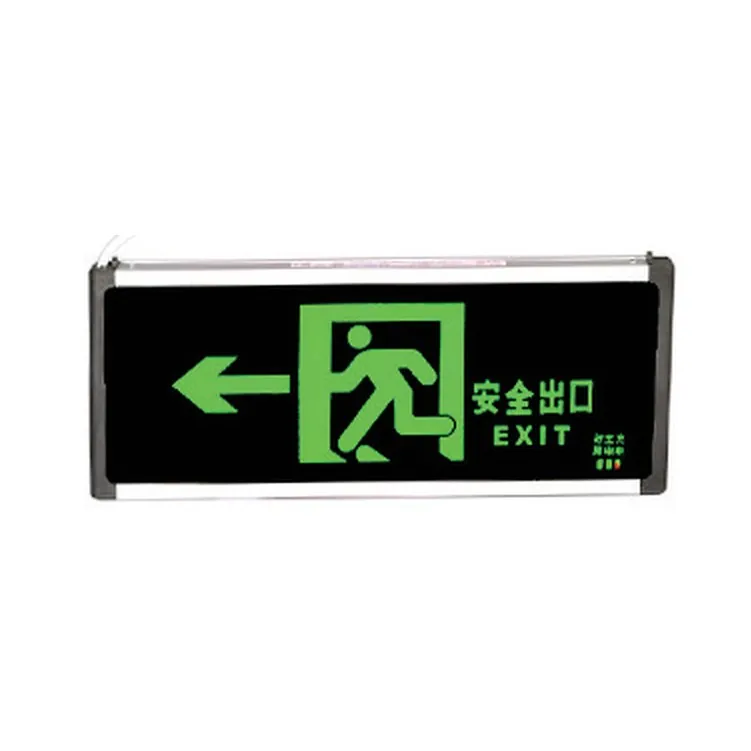

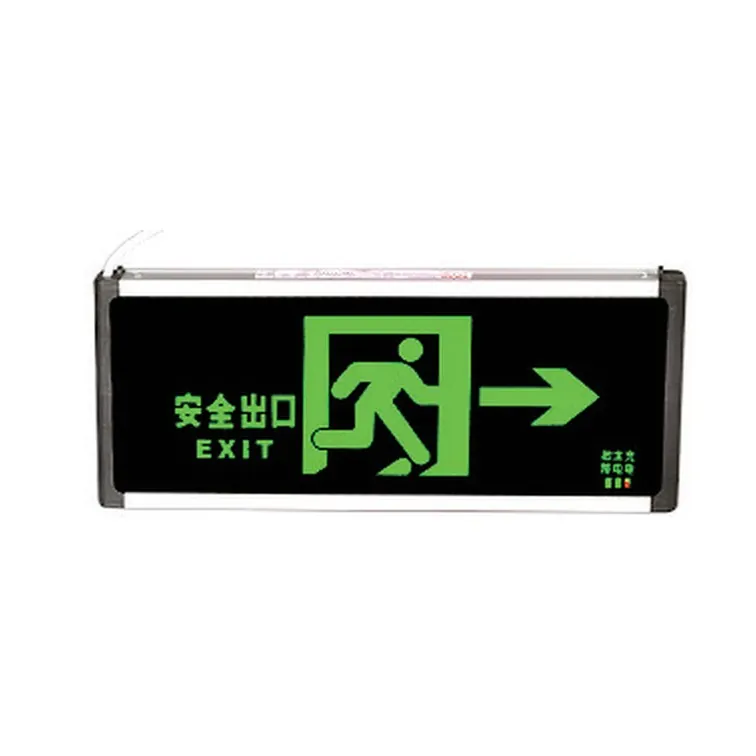

LED Emergency Exit Sign 3–5 W
Green running-man exit signs with a maintenance-free battery for at least 90 minutes.
- 3 W and 5 W
- ≥ 90 minutes emergency operation
- Switchover in less than 2 s
- Wall, ceiling or hanging mounting
Specifications
| Models | BG-XFYJ03A / 05A |
|---|---|
| Power | 3 / 5 W |
| Size | 330 × 145 × 19 / 330 × 149 × 22 mm |
| Weight | 1.2 / 1.4 kg |
| Input voltage | AC 185–264 V, 50 Hz |
| Charging time | ≤ 24 h |
| Colour | Green |
| Switchover time | < 2 s |
| Emergency time | ≥ 90 min |
| Ingress protection | IP40 |
| Material | Aluminium + fire-retardant material |
| Rated life | > 80,000 h |
Values are nominal. Custom wattages, colour temperatures, optics and input voltages are available — ask for the full datasheet and IES file.
Frequently asked questions
Does the sign meet my country’s exit-sign standard?
Exit sign symbols, colours and test rules differ by country. Tell us the standard you need (for example EN 1838 / ISO 7010) and we will confirm what can be supplied.
