Model BG-FZD

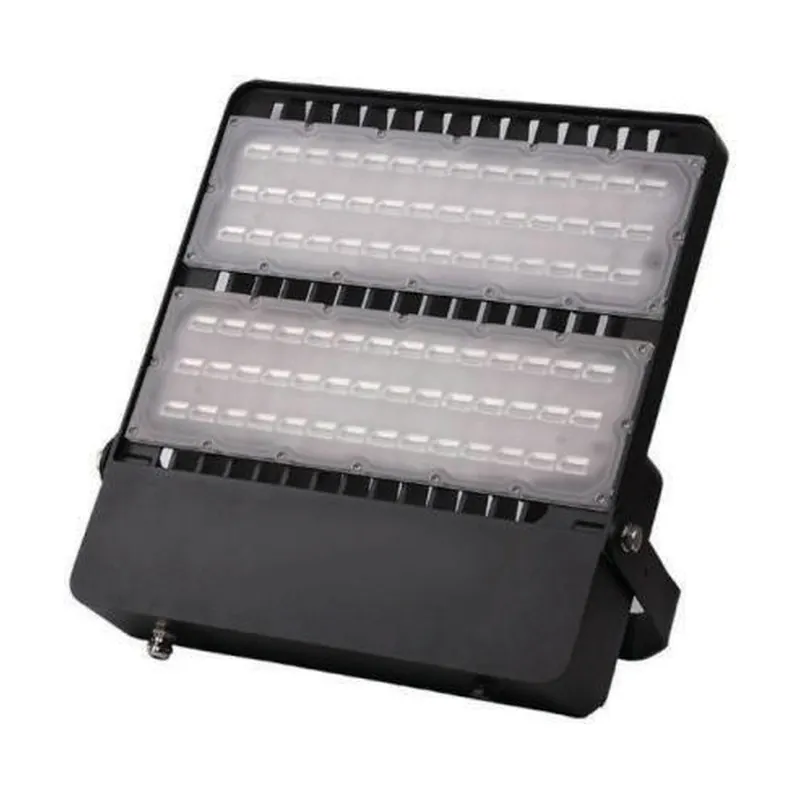

Anti-Vibration LED Crane Light 100–300 W

A floodlight built for moving machinery: anti-vibration screws, IP66, WF2 corrosion protection and a 270° bracket for tower, gantry and overhead cranes.

100 W to 300 W
Anti-vibration fasteners for cranes and moving equipment
IP66 and WF2 corrosion grade
Rated for force-12 wind (36 m/s)
270° galvanised steel bracket, stainless exposed fasteners
> 110 lm/W

Request price & datasheet See specifications

Specifications

Models	BG-FZD100A / 150A / 200A / 300A
Power	100 / 150 / 200 / 300 W
Input voltage	AC 85–265 V, 47/63 Hz
Power factor	> 0.95
Luminous efficacy	> 110 lm/W
Colour temperature	3000 / 4000 / 5000 / 6000 K
CRI	Ra 70 / 80 / 90
Beam angle	30°, 70° × 60°, 90° × 60°, 120° × 80°, 155°
Ingress protection	IP66
Corrosion grade	WF2
Wind resistance	Force 12 (36 m/s)
Material	Die-cast aluminium body + 270° galvanised steel bracket
Operating temperature	−30 °C to +50 °C

Values are nominal. Custom wattages, colour temperatures, optics and input voltages are available — ask for the full datasheet and IES file.

Sizes and weights

Model	Power (W)	Size (mm)	Weight (kg)
BG-FZD100A	100	250 × 358 × 60	4.6
BG-FZD150A	150	285 × 438 × 60	5.5
BG-FZD200A	200	320 × 438 × 60	6.3
BG-FZD300A	300	432 × 406 × 80	7.1

The housing is high-pressure die-cast aluminium, shot-blasted and electrostatically powder coated for humid and corrosive sites. The LED board sits directly on the heat sink with modular air channels for cooling.

Applications

Tower cranes on construction sites
Gantry and container cranes at ports
Overhead cranes in steel plants
Ship loaders and mining equipment

Frequently asked questions

Why does a crane need a special floodlight?

Cranes vibrate constantly and swing in the wind. Ordinary floodlights loosen screws, crack solder joints and lose drivers. The FZD uses anti-vibration fasteners and a rigid body, and is rated for high wind.
