Applications
- Offices and lift lobbies
- Underground car parks
- Factory workshops
Model BG-RG

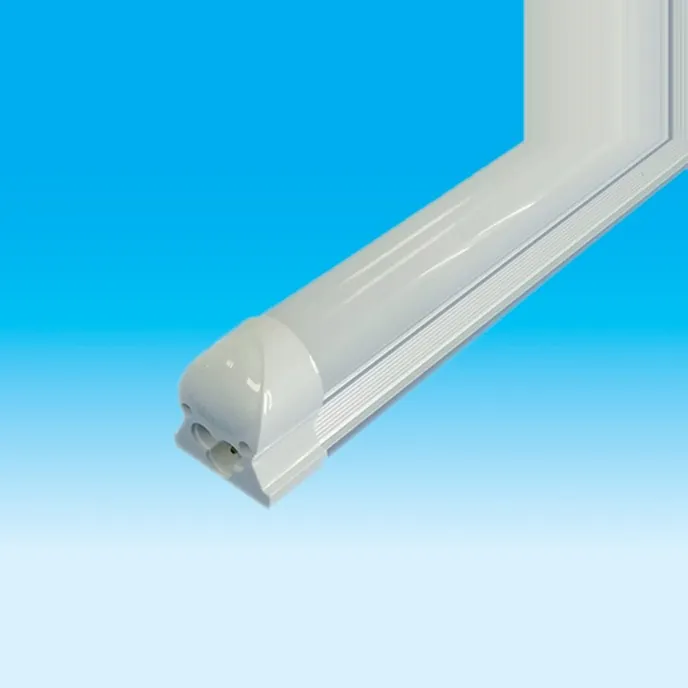

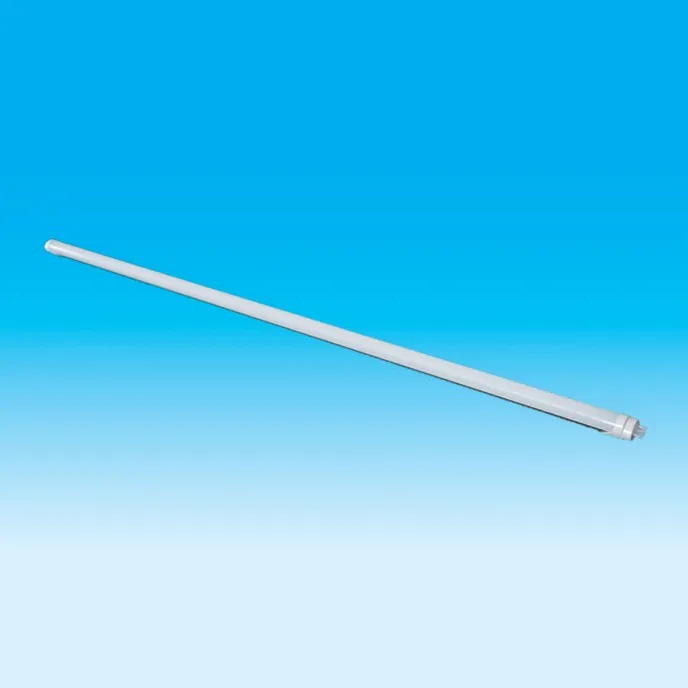

LED T8 Tube & Batten 8–18 W
Fluorescent replacements: T8 tubes and integrated battens in 600 and 1200 mm.
- 600 mm and 1200 mm
- 8 W to 18 W
- Aluminium body with PC cover
- No mercury, instant start
Specifications
| Models | BG-RG08 / 09 / 16 / 18 |
|---|---|
| Power | 8 / 9 / 16 / 18 W |
| Length | 600 mm (9 W); 1200 mm (16, 18 W) |
| Input voltage | AC 100–240 V, 50/60 Hz |
| Power factor | > 0.9 |
| Colour temperature | 3000–6000 K |
| CRI | Ra 70–90 |
| LED | SMD2835 |
| Beam angle | 180° |
| Luminous efficacy | 90 lm/W |
| Rated life | 50,000 h |
Values are nominal. Custom wattages, colour temperatures, optics and input voltages are available — ask for the full datasheet and IES file.
Request a quote
Price, datasheet and lead time for BG-RG
Tell us the quantity and where the lights will be installed. We reply by email within one working day.
Email us
[email protected]Tell us the product, quantity, site location and any drawings or specifications. An engineer reads every email and we reply within one working day (China time, GMT+8).
