Applications
- Hotel lobbies and corridors
- Restaurants
- Building entrances
Model BG-BDO
LED Up & Down Wall Light 8–36 W

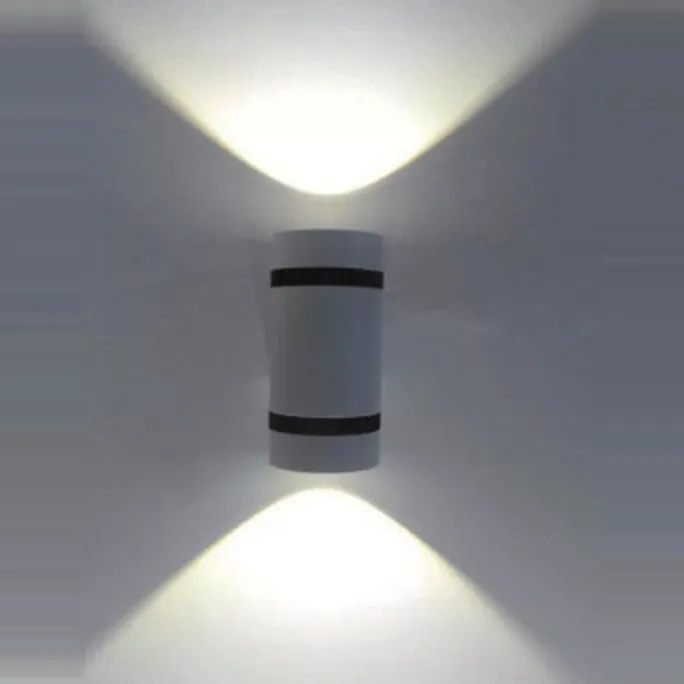

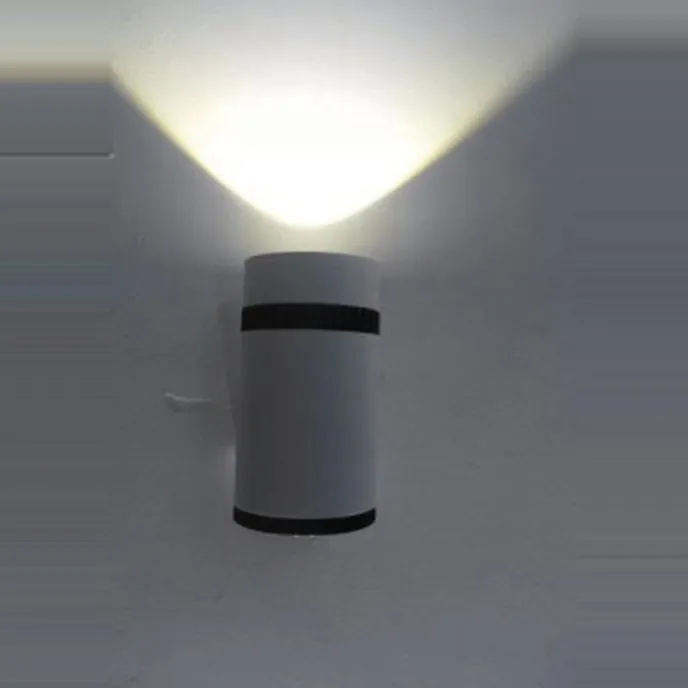

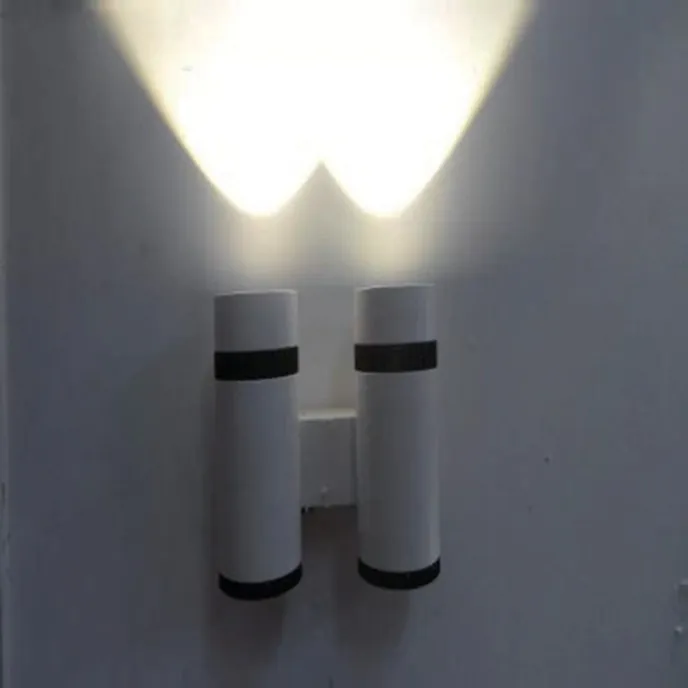

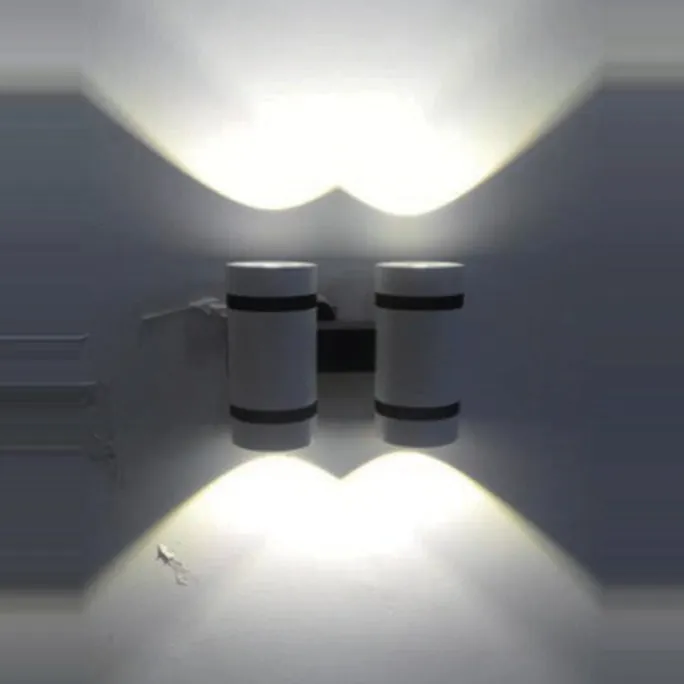

Cylinder wall lights that wash the wall up and down, in one- and two-head versions.
- 8 W to 36 W
- Up-and-down beams
- Single or twin cylinders
- 100 lm/W
Specifications
| Models | BG-BDO08 / 18 / 24 / 36 |
|---|---|
| Power | 8 / 18 / 24 / 36 W |
| Size | 90 × 260 / 108 × 300 / 110 × 300 / 145 × 300 mm |
| Input voltage | AC 200–240 V, 50/60 Hz (100–240 V on request) |
| Power factor | > 0.9 |
| Colour temperature | 3000–6000 K |
| CRI | Ra 70–90 |
| Material | Aluminium + glass / acrylic |
| Luminous efficacy | 100 lm/W |
| Rated life | 50,000 h |
Values are nominal. Custom wattages, colour temperatures, optics and input voltages are available — ask for the full datasheet and IES file.
Request a quote
Price, datasheet and lead time for BG-BDO
Tell us the quantity and where the lights will be installed. We reply by email within one working day.
