Applications
- Gas station canopies
- Shop and bank fronts
- Art buildings and parks

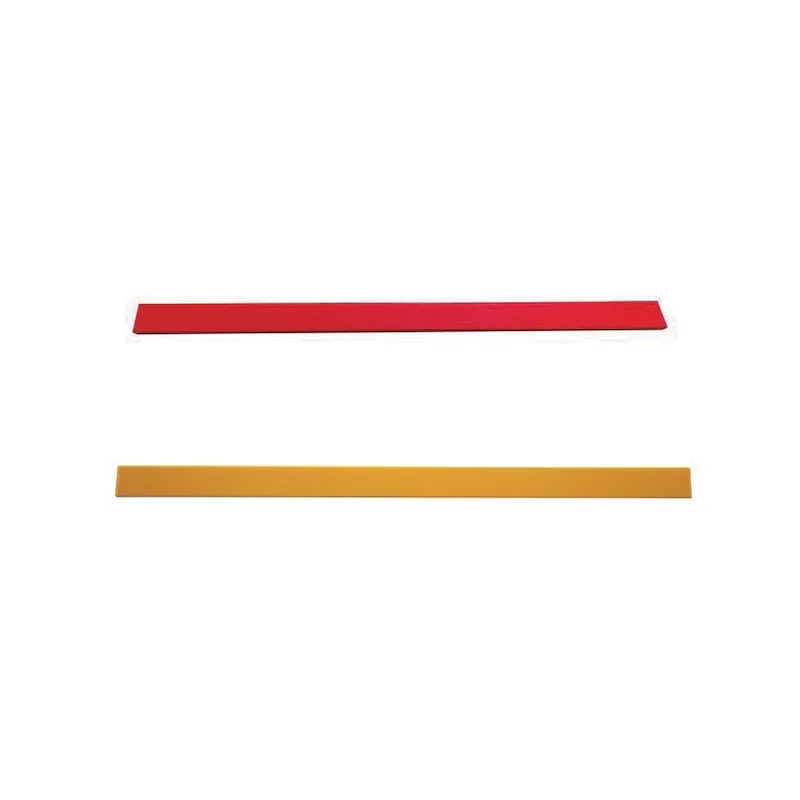

Model BG-TXC20
Gas Station Canopy LED Light Strip 20 W
Red or yellow illuminated strips for gas station canopy edges, shop fronts and parks.
- Red or yellow 4 mm hot-formed acrylic
- Anodised extruded aluminium back
- DC 12 V, IP65
- Short-circuit, over-current, over-voltage and over-temperature protection
Specifications
| Model | BG-TXC20 |
|---|---|
| Power | 20 W |
| Length | 1000 mm |
| Input voltage | DC 12 V |
| Power factor | > 0.9 |
| Colour | Red or yellow |
| Ingress protection | IP65 |
| Material | Acrylic + aluminium |
| Beam angle | 120° |
| Luminous efficacy | 90 lm/W |
| Operating temperature | −30 °C to +50 °C |
| Rated life | 50,000 h |
Values are nominal. Custom wattages, colour temperatures, optics and input voltages are available — ask for the full datasheet and IES file.
