Applications
- Building facades and curtain walls
- Bridges
- Hotels and billboards
- Night-time city scenes
Model BG-DGL

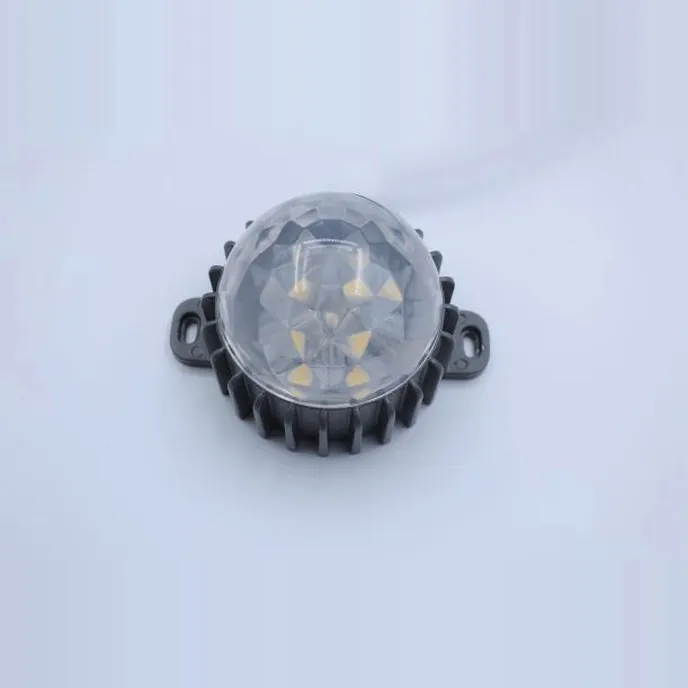

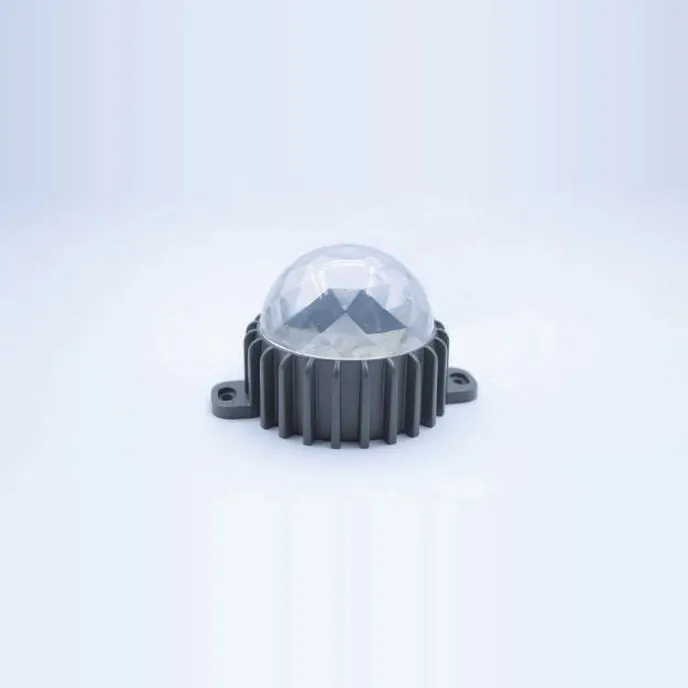

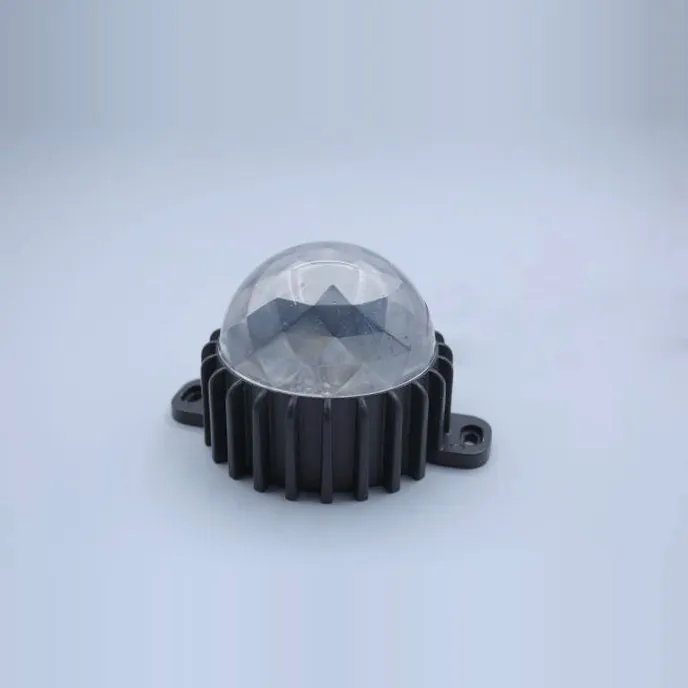

LED Point Source Light 3–9 W
Pixel lights that turn a facade or bridge into a low-resolution media screen.
- 3 / 5 / 9 W
- Ø80, Ø90 or Ø150 mm
- Single colour or RGB with DMX
- IP65 aluminium base
Specifications
| Models | BG-DGL24003 / 24005 / 24009 |
|---|---|
| Power | 3 / 5 / 9 W |
| Size | Ø80 / Ø90 / Ø150 mm |
| Input voltage | DC 24 V |
| Power factor | > 0.9 |
| Colour temperature | 3000–6000 K or RGB |
| CRI | Ra 70–90 |
| Ingress protection | IP65 |
| Material | Aluminium |
| Beam angle | 120° |
| Luminous efficacy | 90 lm/W |
Values are nominal. Custom wattages, colour temperatures, optics and input voltages are available — ask for the full datasheet and IES file.
Request a quote
Price, datasheet and lead time for BG-DGL
Tell us the quantity and where the lights will be installed. We reply by email within one working day.
