Applications
- Facades and columns
- Exhibition halls and museums
- Galleries and offices
Model BG-XGL

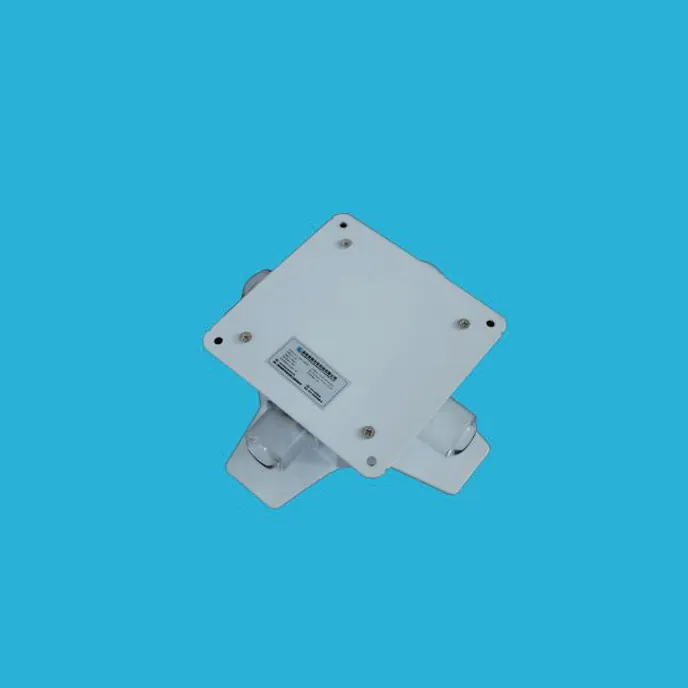

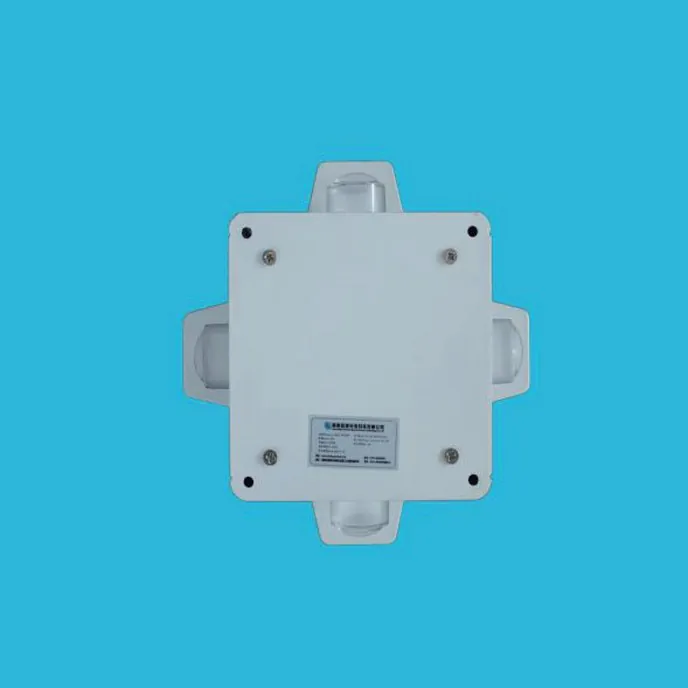

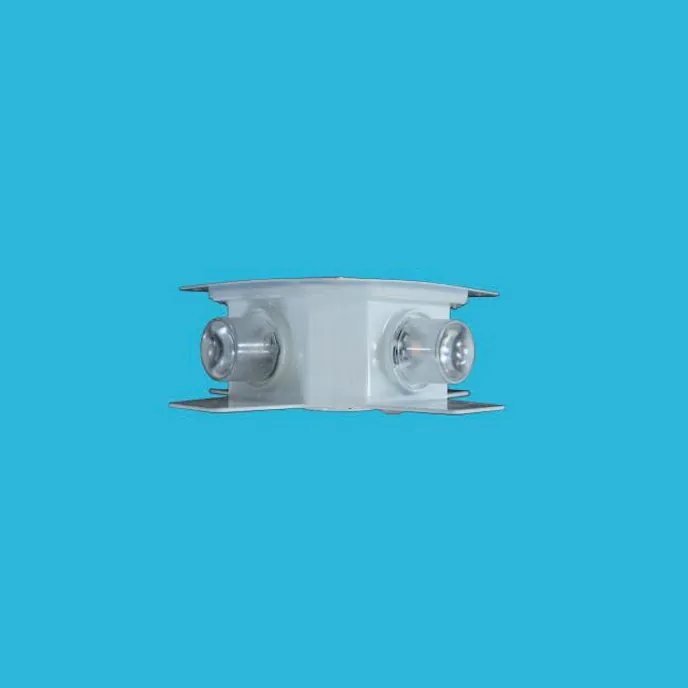

LED Cross-Star Light 4–15 W
A four-way light that throws a cross-shaped star pattern onto walls and columns.
- 4 / 12 / 15 W
- Four beams in a cross pattern
- 15°, 25°, 45° or 60° beams
- IP65 die-cast aluminium, rain and dust proof
Specifications
| Models | BG-XGL2404 / 2412 / 2415 |
|---|---|
| Power | 4 / 12 / 15 W |
| Size | 185 × 125 × 65 / 185 × 125 × 65 / 185 × 125 × 70 mm |
| Input voltage | DC 24 V |
| Power factor | > 0.9 |
| Colour temperature | 3000–6000 K |
| CRI | Ra 70–90 |
| Ingress protection | IP65 |
| Beam angle | 15° / 25° / 45° / 60° |
| Luminous efficacy | 90 lm/W |
| Rated life | 50,000 h |
Values are nominal. Custom wattages, colour temperatures, optics and input voltages are available — ask for the full datasheet and IES file.
